Part Image

LTC6103CMS8#PBF - Analog Devices

Description: SP Amp Current Sense Amp Dual 60V Automotive 8-Pin MSOP Tube

Download LTC6103CMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

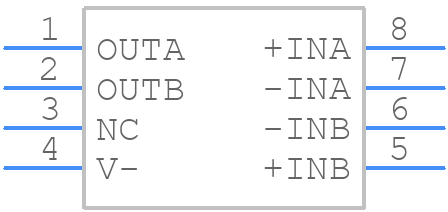

Symbol
LTC6103CMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6103CMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSOP8
click to zoom
3D Models
LTC6103CMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MSOP8
click to zoom

LTC6103CMS8#PBF Details

  • Manufacturer Part Number:

    LTC6103CMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.245 µA

  • Bandwidth (3dB)-Nom:

    0.12 MHz

  • Bias Current-Max (IIB) @25C:

    0.17 µA

  • Frequency Compensation:

    NO

  • Input Offset Voltage-Max:

    600 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    1.38 mA

  • Supply Voltage Limit-Max:

    70 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Wideband:

    NO

  • Width:

    3 mm

LTC6103CMS8#PBF Frequently Asked Questions (FAQs)

  • The maximum power dissipation of the LTC6103CMS8 is dependent on the thermal resistance of the package and the ambient temperature. According to the datasheet, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.
  • To optimize the layout for the LTC6103CMS8, it is recommended to follow the guidelines provided in the datasheet, including keeping the input and output traces short and wide, using a solid ground plane, and minimizing the loop area of the input and output traces.
  • The recommended input capacitor value for the LTC6103CMS8 is 10uF to 22uF, depending on the input voltage and output current requirements. A larger capacitor value can help to reduce the input ripple voltage and improve the overall performance of the device.
  • The LTC6103CMS8 is rated for operation up to 125°C, but the device's performance and reliability may be affected at high temperatures. It is recommended to derate the device's power dissipation and output current at high temperatures to ensure reliable operation.
  • To protect the LTC6103CMS8 from overvoltage and undervoltage conditions, it is recommended to use a voltage supervisor or a voltage monitor IC to detect and respond to abnormal voltage conditions. Additionally, using a TVS diode or a zener diode can help to clamp the input voltage and prevent damage to the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6103CMS8#PBF Overview

Use the download button to access the LTC6103CMS8#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC61, or try a keyword search, such as Operational Amplifiers
