LTC6115HMS#PBF - Analog Devices

Description: Current Sense Amplifiers High Voltage High Side Current and Voltage Sense

Download LTC6115HMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

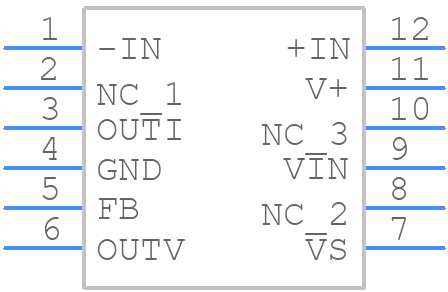

Symbol
LTC6115HMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6115HMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP **
click to zoom
3D Models
LTC6115HMS#PBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP **
click to zoom

LTC6115HMS#PBF Details

  • Manufacturer Part Number:

    LTC6115HMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2018-10-25

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.245 µA

  • Bandwidth (3dB)-Nom:

    0.2 MHz

  • Bias Current-Max (IIB) @25C:

    0.17 µA

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.02 µA

  • Input Offset Voltage-Max:

    800 µV

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    tssop12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power:

    YES

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.035 V/us

  • Slew Rate-Nom:

    0.06 V/us

  • Supply Current-Max:

    0.525 mA

  • Supply Voltage Limit-Max:

    105 V

  • Supply Voltage-Nom (Vsup):

    6 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Wideband:

    NO

  • Width:

    3 mm

LTC6115HMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6115HMS involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a 4-layer board with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and layout guidelines in the datasheet. Additionally, ensure that the input and output capacitors are of high quality and have low ESR. It's also important to decouple the input and output with ceramic capacitors and to use a low-impedance output capacitor.
  • The LTC6115HMS can operate in ambient temperatures up to 125°C, but the maximum junction temperature is 150°C. It's important to ensure that the device is properly heat-sinked and that the thermal design is adequate to prevent overheating.
  • Yes, the LTC6115HMS is available in a variety of grades, including a high-reliability grade (LTC6115HMS#PBF-H) that is suitable for aerospace and defense applications. This grade has undergone additional testing and screening to ensure high reliability and performance.
  • To troubleshoot common issues with the LTC6115HMS, start by checking the PCB layout and component values to ensure they match the recommended values in the datasheet. Next, check the input and output waveforms using an oscilloscope to identify any signs of oscillation or instability. Finally, check the device's thermal performance and ensure that it is properly heat-sinked.
