LTC6227HMS8E#PBF - Analog Devices

Description: 1nV/??Hz 420MHz GBW, 180V/?s, Low Distortion Rail-to-Rail Output Op Amps

Download LTC6227HMS8E#PBF Model

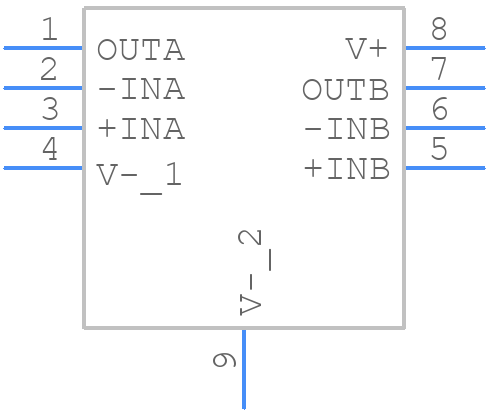

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6227HMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_
click to zoom
3D Models
LTC6227HMS8E#PBF - Analog Devices  - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_
click to zoom

LTC6227HMS8E#PBF Details

  • Manufacturer Part Number:

    LTC6227HMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-03-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8.4 µA

  • Bandwidth (3dB)-Nom:

    330 MHz

  • Bias Current-Max (IIB) @25C:

    8.4 µA

  • Common-mode Reject Ratio-Min:

    95 dB

  • Common-mode Reject Ratio-Nom:

    114 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.5 µA

  • Input Offset Voltage-Max:

    225 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    90 V/us

  • Slew Rate-Nom:

    180 V/us

  • Supply Current-Max:

    15.2 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    420000

  • Voltage Gain-Min:

    44668.36

  • Wideband:

    YES

  • Width:

    3 mm

LTC6227HMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6227HMS8E involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a symmetrical layout for the differential inputs and outputs to minimize common-mode noise.
  • The choice of gain resistors for the LTC6227HMS8E depends on the desired gain and input impedance. A higher gain resistor value will result in higher gain, but may also increase noise and reduce bandwidth. A good starting point is to use the recommended values in the datasheet, and then adjust based on the specific requirements of your application.
  • The LTC6227HMS8E is rated for operation from -40°C to 125°C, but the device's performance may degrade at extreme temperatures. It's recommended to derate the device's performance and ensure proper thermal management to maintain reliability and accuracy.
  • Yes, the LTC6227HMS8E can be used in a single-supply configuration, but it requires careful consideration of the input common-mode range and output voltage swing. The device's input common-mode range is limited to 1.5V below the positive supply rail, and the output voltage swing is limited to 1.5V above the negative supply rail.
  • To minimize EMI in your design, use a shielded enclosure, keep the device and its associated components away from high-frequency sources, and use a low-pass filter or ferrite bead on the power supply lines. Additionally, ensure that the device's output is properly terminated and that the PCB layout is optimized for low EMI emissions.
