LTC6227IDD#PBF - Analog Devices

Description: 1nV/??Hz 420MHz GBW, 180V/?s, Low Distortion Rail-to-Rail Output Op Amps ,– 0.3V to V+ + 0.3V ,10mA ,–40°C to 85°C

Download LTC6227IDD#PBF Model

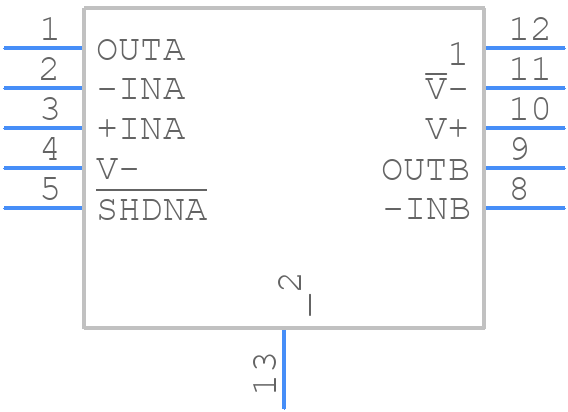

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6227IDD#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-Lead Plastic DFN (3mm x 3mm)-1
click to zoom
3D Models
LTC6227IDD#PBF - Analog Devices  - 3D model - Small Outline No-lead - 10-Lead Plastic DFN (3mm x 3mm)-1
click to zoom

LTC6227IDD#PBF Details

  • Manufacturer Part Number:

    LTC6227IDD#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-03-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8.4 µA

  • Bandwidth (3dB)-Nom:

    330 MHz

  • Bias Current-Max (IIB) @25C:

    8.4 µA

  • Common-mode Reject Ratio-Min:

    95 dB

  • Common-mode Reject Ratio-Nom:

    114 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.5 µA

  • Input Offset Voltage-Max:

    225 µV

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    90 V/us

  • Slew Rate-Nom:

    180 V/us

  • Supply Current-Max:

    14.8 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    420000

  • Voltage Gain-Min:

    25118.86

  • Wideband:

    YES

  • Width:

    3 mm

LTC6227IDD#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6227 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer board with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides a recommended layout diagram, but it's also a good idea to consult with experienced PCB designers and perform simulations to ensure optimal performance.
  • The choice of input and output capacitors for the LTC6227 depends on the specific application requirements, such as the input voltage range, output current, and desired ripple voltage. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also important to consult with capacitor manufacturers and perform simulations to ensure the chosen capacitors meet the application requirements.
  • The LTC6227 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) is 150°C. It's important to ensure that the device is operated within the specified temperature range to ensure reliability and prevent thermal shutdown.
  • To ensure stability and prevent oscillation, it's important to follow the recommended layout and component selection guidelines in the datasheet. Additionally, the input and output capacitors should be chosen to ensure that the device is operated within the stable region of the gain-bandwidth product curve. It's also recommended to perform simulations and testing to verify the stability of the device in the specific application.
  • The typical startup time for the LTC6227 is around 100μs, but this can vary depending on the specific application and component values. The startup time can be affected by the input voltage, output load, and bypass capacitor values. It's recommended to consult the datasheet and perform simulations to determine the startup time for a specific application.
