LTC6227IDD#TRPBF - Analog Devices

Description: 1nV/??Hz 420MHz GBW, 180V/?s, Low Distortion Rail-to-Rail Output Op Amps ,– 0.3V to V+ + 0.3V ,10mA ,–40°C to 85°C

Download LTC6227IDD#TRPBF Model
Schematic

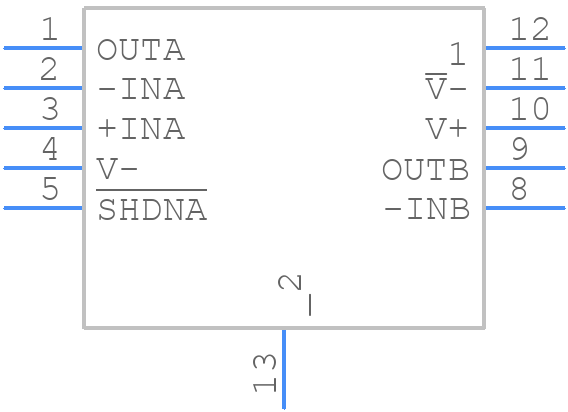

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6227IDD#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DD Package 10-Lead Plastic DFN  (3mm × 3mm)
click to zoom
3D Models
LTC6227IDD#TRPBF - Analog Devices  - 3D model - Small Outline No-lead - DD Package 10-Lead Plastic DFN  (3mm × 3mm)
click to zoom

LTC6227IDD#TRPBF Details

  • Manufacturer Part Number:

    LTC6227IDD#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1699

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-03-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8.4 µA

  • Bandwidth (3dB)-Nom:

    330 MHz

  • Bias Current-Max (IIB) @25C:

    8.4 µA

  • Common-mode Reject Ratio-Min:

    95 dB

  • Common-mode Reject Ratio-Nom:

    114 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.5 µA

  • Input Offset Voltage-Max:

    225 µV

  • JESD-30 Code:

    S-PDSO-N10

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.11,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    90 V/us

  • Slew Rate-Nom:

    180 V/us

  • Supply Current-Max:

    14.8 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    420000

  • Voltage Gain-Min:

    25118.86

  • Wideband:

    YES

  • Width:

    3 mm

LTC6227IDD#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6227 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer board with a dedicated power plane and a dedicated ground plane is recommended.
  • The input capacitor should be a low-ESR ceramic capacitor with a value between 1uF to 10uF, while the output capacitor should be a low-ESR ceramic or tantalum capacitor with a value between 1uF to 22uF. The capacitor values and types may vary depending on the specific application and operating conditions.
  • The LTC6227 has an operating temperature range of -40°C to 125°C, but the device can be operated at a junction temperature of up to 150°C. However, the device's performance and reliability may be affected at higher temperatures.
  • To ensure stability, the LTC6227 requires a minimum output capacitance of 1uF, and the output capacitor should be placed close to the device. Additionally, the input and output traces should be kept short and separate, and the device should be operated within its recommended operating conditions.
  • The recommended input voltage range for the LTC6227 is 2.7V to 5.5V, but the device can operate from 2.5V to 5.5V. However, the device's performance and accuracy may be affected at lower input voltages.
