LTC6227IMS8E#PBF - Analog Devices

Description: 1nV/??Hz 420MHz GBW, 180V/?s, Low Distortion Rail-to-Rail Output Op Amps

Download LTC6227IMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

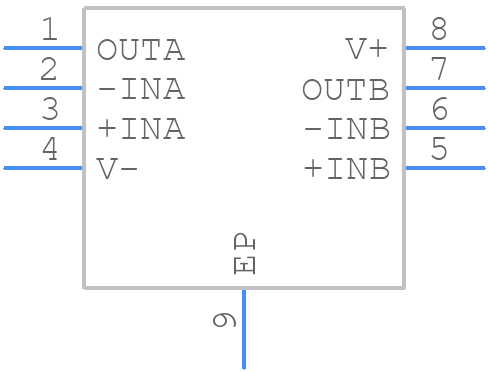

LTC6227IMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6227IMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP
click to zoom
3D Models
LTC6227IMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP
click to zoom

LTC6227IMS8E#PBF Details

  • Manufacturer Part Number:

    LTC6227IMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2020-03-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    8.4 µA

  • Bandwidth (3dB)-Nom:

    330 MHz

  • Bias Current-Max (IIB) @25C:

    8.4 µA

  • Common-mode Reject Ratio-Min:

    95 dB

  • Common-mode Reject Ratio-Nom:

    114 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.5 µA

  • Input Offset Voltage-Max:

    225 µV

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -6 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP8,.25

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    90 V/us

  • Slew Rate-Nom:

    180 V/us

  • Supply Current-Max:

    15.2 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    420000

  • Voltage Gain-Min:

    44668.36

  • Wideband:

    YES

  • Width:

    3 mm

LTC6227IMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6227 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer board with a dedicated power plane and a dedicated ground plane is recommended. The datasheet provides a recommended layout diagram, but it's also a good idea to consult with experienced PCB designers and perform simulations to ensure optimal performance.
  • The choice of input and output capacitors for the LTC6227 depends on the specific application requirements, such as the input voltage range, output current, and desired ripple voltage. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also a good idea to consult with capacitor manufacturers and perform simulations to ensure the chosen capacitors meet the application requirements.
  • The LTC6227 has an operating temperature range of -40°C to 125°C, but the maximum junction temperature (TJ) should not exceed 150°C. It's important to ensure that the device is properly heatsinked and that the ambient temperature is within the specified range to ensure reliable operation.
  • To ensure stability and prevent oscillation, it's important to follow the recommended layout and component selection guidelines in the datasheet. Additionally, the input and output capacitors should be chosen to ensure that the device is stable over the entire operating range. The datasheet provides some guidance on stability analysis, but it's also a good idea to perform simulations and consult with experienced designers to ensure stability.
  • The typical startup time for the LTC6227 is around 100μs, but this can vary depending on the specific application and component values. The datasheet provides some guidance on startup time, but it's also a good idea to consult with experienced designers and perform simulations to ensure that the startup time meets the application requirements.
