LTC6229HDD#PBF - Analog Devices

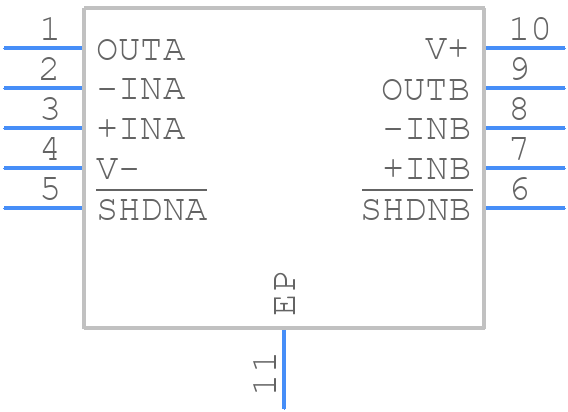

LTC6229HDD#PBF Details

• Manufacturer Part Number:

  LTC6229HDD#PBF

• Brand Name:

  Analog Devices Inc

• Pbfree Code:

  No

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Package Description:

  DFN-10

• Pin Count:

  10

• Manufacturer Package Code:

  05-08-1699

• ECCN Code:

  EAR99

• HTS Code:

  8542.33.00.01

• Date Of Intro:

  2019-09-04

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  0

• Amplifier Type:

  OPERATIONAL AMPLIFIER

• Architecture:

  VOLTAGE-FEEDBACK

• Average Bias Current-Max (IIB):

  4.1 µA

• Bandwidth (3dB)-Nom:

  730 MHz

• Common-mode Reject Ratio-Min:

  95 dB

• Common-mode Reject Ratio-Nom:

  110 dB

• Frequency Compensation:

  YES

• Input Offset Current-Max (IIO):

  0.55 µA

• Input Offset Voltage-Max:

  110 µV

• JESD-30 Code:

  S-PDSO-N10

• JESD-609 Code:

  e3

• Length:

  3 mm

• Low-Bias:

  NO

• Low-Offset:

  YES

• Micropower:

  NO

• Moisture Sensitivity Level:

  1

• Neg Supply Voltage Limit-Max:

  -5 V

• Neg Supply Voltage-Nom (Vsup):

  -5 V

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  125 °C

• Operating Temperature-Min:

  -40 °C

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HVSON

• Package Equivalence Code:

  SOLCC10,.11,20

• Package Shape:

  SQUARE

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

• Power:

  NO

• Programmable Power:

  NO

• Seated Height-Max:

  0.8 mm

• Slew Rate-Min:

  250 V/us

• Slew Rate-Nom:

  500 V/us

• Supply Current-Max:

  19.8 mA

• Supply Voltage Limit-Max:

  11.75 V

• Supply Voltage-Nom (Vsup):

  3 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Temperature Grade:

  AUTOMOTIVE

• Terminal Finish:

  Matte Tin (Sn)

• Terminal Form:

  NO LEAD

• Terminal Pitch:

  0.5 mm

• Terminal Position:

  DUAL

• Unity Gain BW-Nom:

  890000

• Voltage Gain-Min:

  118

• Wideband:

  YES

• Width:

  3 mm
