LTC6229HMS8E#PBF - Analog Devices

Description: High Speed Operational Amplifiers Prec, Low Drift & Noise Hi Speed Amp

Download LTC6229HMS8E#PBF Model

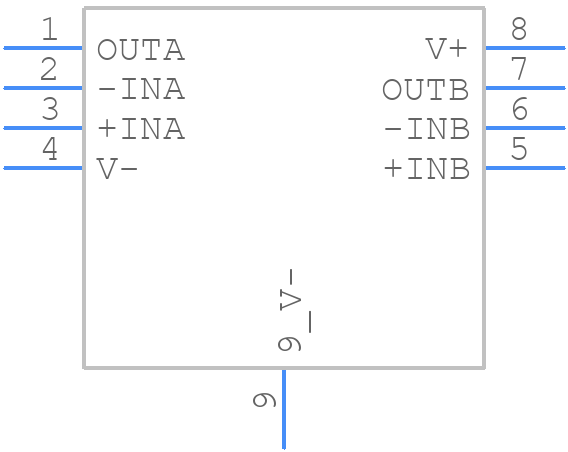

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6229HMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom
3D Models
LTC6229HMS8E#PBF - Analog Devices  - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom

LTC6229HMS8E#PBF Details

  • Manufacturer Part Number:

    LTC6229HMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    SOIC-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Date Of Intro:

    2019-09-04

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    4.1 µA

  • Bandwidth (3dB)-Nom:

    730 MHz

  • Common-mode Reject Ratio-Min:

    95 dB

  • Common-mode Reject Ratio-Nom:

    110 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    0.55 µA

  • Input Offset Voltage-Max:

    110 µV

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9025 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Neg Supply Voltage Limit-Max:

    -5 V

  • Neg Supply Voltage-Nom (Vsup):

    -5 V

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.752 mm

  • Slew Rate-Min:

    250 V/us

  • Slew Rate-Nom:

    500 V/us

  • Supply Current-Max:

    19.8 mA

  • Supply Voltage Limit-Max:

    11.75 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    890000

  • Voltage Gain-Min:

    118

  • Wideband:

    YES

  • Width:

    3.899 mm

LTC6229HMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6229 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability in high-gain configurations, it's essential to follow the recommended compensation network and component values, and to ensure that the device is operated within the recommended supply voltage range. Additionally, a low-ESR output capacitor and a high-quality input capacitor can help improve stability.
  • The maximum power dissipation of the LTC6229 is dependent on the package type and the ambient temperature. The maximum power dissipation can be calculated using the formula: Pd = (Vcc x Icc) + (Vout x Iout). It's essential to ensure that the device is operated within the recommended power dissipation limits to prevent overheating.
  • Yes, the LTC6229 can be used as a unity-gain buffer. However, it's essential to ensure that the input and output impedances are matched, and that the device is operated within the recommended supply voltage range. Additionally, the input and output capacitors should be selected to ensure stability and optimal performance.
  • To protect the LTC6229 from overvoltage and ESD, it's recommended to use a voltage clamp or a transient voltage suppressor (TVS) at the input, and to follow proper ESD handling and storage procedures. Additionally, the device should be operated within the recommended supply voltage range, and the input and output pins should be protected with ESD diodes or resistors.
