LTC6247IDC#TRMPBF - Analog Devices

Description: Amplificateurs de précision Dual 180MHz, 1MA RRIO Op Amp

Download LTC6247IDC#TRMPBF Model

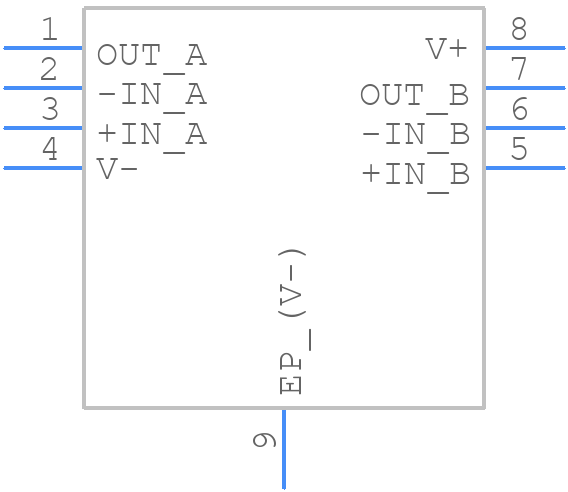

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6247IDC#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm)
click to zoom
3D Models
LTC6247IDC#TRMPBF - Analog Devices  - 3D model - Small Outline No-lead - DC8 Package 8-Lead Plastic DFN (2mm × 2mm)
click to zoom

LTC6247IDC#TRMPBF Details

  • Manufacturer Part Number:

    LTC6247IDC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    1.5 µA

  • Bias Current-Max (IIB) @25C:

    1 µA

  • Common-mode Reject Ratio-Min:

    76 dB

  • Common-mode Reject Ratio-Nom:

    100 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    3750 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Min:

    50 V/us

  • Slew Rate-Nom:

    55 V/us

  • Supply Current-Max:

    3.6 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.7 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    150000

  • Voltage Gain-Min:

    2500

  • Wideband:

    YES

  • Width:

    2 mm

LTC6247IDC#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6247 involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • Choose X7R or X5R ceramic capacitors with a voltage rating of at least 2x the maximum input voltage. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor. Ensure the capacitors are placed close to the device and connected directly to the pins.
  • The maximum power dissipation of the LTC6247 is dependent on the ambient temperature and the thermal resistance of the package. For the DFN package, the maximum power dissipation is approximately 1.4W at 25°C ambient temperature.
  • To ensure stability, ensure the output capacitor has a low ESR, the input capacitor is properly bypassed, and the device is properly decoupled from the power supply. Also, avoid using long input and output traces, and keep the device away from noise sources.
  • The recommended input voltage range for the LTC6247 is 2.7V to 5.5V. Operating the device outside this range may affect its performance and reliability.
