LTC6260IMS#PBF - Analog Devices

Description: Op Amp Quad GP R-R I/O ±2.625V/5.25V Automotive 16-Pin MSOP Tube

Download LTC6260IMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

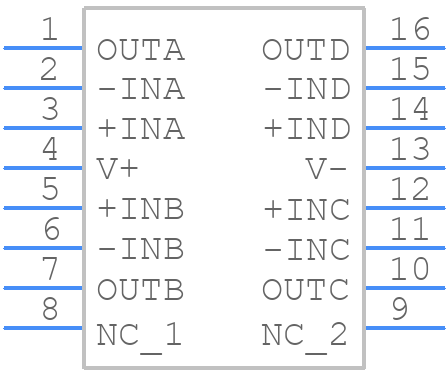

Symbol
LTC6260IMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6260IMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 16 Lead Plastic MSOP_1
click to zoom
3D Models
LTC6260IMS#PBF - Analog Devices - 3D model - Small Outline Packages - 16 Lead Plastic MSOP_1
click to zoom

LTC6260IMS#PBF Details

  • Manufacturer Part Number:

    LTC6260IMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.075 µA

  • Common-mode Reject Ratio-Min:

    64 dB

  • Common-mode Reject Ratio-Nom:

    95 dB

  • Frequency Compensation:

    NO

  • Input Offset Current-Max (IIO):

    0.075 µA

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Low-Bias:

    NO

  • Low-Offset:

    NO

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    4

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Min:

    0.2 V/us

  • Slew Rate-Nom:

    0.24 V/us

  • Supply Current-Max:

    0.1 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    1300

  • Voltage Gain-Min:

    3500

  • Wideband:

    NO

  • Width:

    3 mm

LTC6260IMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6260 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Refer to the Analog Devices application note AN140 for more details.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, the device should be operated within its recommended operating conditions, and the input voltage should be well-regulated.
  • The maximum power dissipation of the LTC6260 is dependent on the package type and the ambient temperature. For the MSOP package, the maximum power dissipation is 450mW at 70°C ambient temperature. Refer to the datasheet for more information on power dissipation and thermal characteristics.
  • Yes, the LTC6260 can be used as a unity gain buffer. However, it's essential to ensure that the input signal is within the common-mode input range of the device, and the output is not loaded with a low impedance. Also, the device should be operated within its recommended operating conditions.
  • The bandwidth of the LTC6260 is dependent on the gain, input capacitance, and output load. The datasheet provides a bandwidth vs. gain graph, which can be used to estimate the bandwidth. Additionally, the bandwidth can be calculated using the formula: Bandwidth = GBW / (Gain x √(1 + (Rout / RL))), where GBW is the gain-bandwidth product, Rout is the output resistance, and RL is the load resistance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6260IMS#PBF Overview

Use the download button to access the LTC6260IMS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC62, or try a keyword search, such as Operational Amplifiers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
