LTC6262HDC#TRMPBF - Analog Devices

Description: Operational Amplifiers - Op Amps Dual 30MHz 240uA Power Efficient RRIO Op Amp

Download LTC6262HDC#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

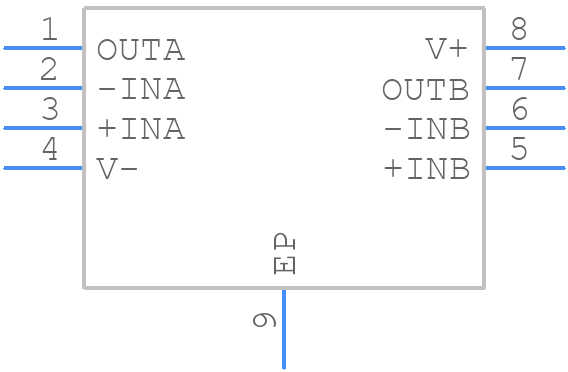

LTC6262HDC#TRMPBF - Analog Devices - PCB symbol
