LTC6262IMS8#PBF - Analog Devices

Description: Op Amp Dual Precision Amplifier R-R I/O ±2.625V/5.25V Automotive 8-Pin MSOP Tube

Download LTC6262IMS8#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

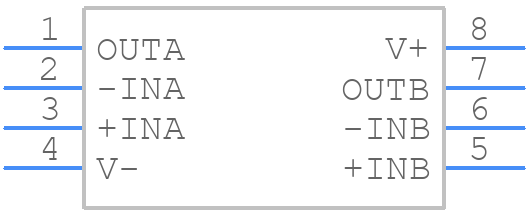

Symbol
LTC6262IMS8#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6262IMS8#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom
3D Models
LTC6262IMS8#PBF - Analog Devices - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP
click to zoom

LTC6262IMS8#PBF Details

  • Manufacturer Part Number:

    LTC6262IMS8#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    0.15 µA

  • Bias Current-Max (IIB) @25C:

    0.05 µA

  • Common-mode Reject Ratio-Min:

    70 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1000 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    NO

  • Low-Offset:

    YES

  • Micropower:

    YES

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    1.1 mm

  • Slew Rate-Nom:

    6.5 V/us

  • Supply Current-Max:

    0.3 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Unity Gain BW-Nom:

    28000

  • Voltage Gain-Min:

    10000

  • Wideband:

    NO

  • Width:

    3 mm

LTC6262IMS8#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6262 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the bypass capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, the datasheet provides a recommended PCB layout and land pattern that should be followed.
  • The choice of input and output capacitors depends on the specific application and operating frequency. In general, low-ESR capacitors with a high self-resonant frequency (SRF) are recommended. For the input capacitor, a 1-10uF ceramic capacitor with an SRF above 100MHz is suitable. For the output capacitor, a 10-100uF ceramic capacitor with an SRF above 10MHz is recommended. The datasheet provides more detailed guidance on capacitor selection.
  • The LTC6262 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C. It's essential to ensure proper thermal management and heat sinking to maintain reliable operation.
  • The LTC6262 requires a proper bias voltage and configuration to operate correctly. The datasheet provides a detailed description of the pin functions and recommended biasing and configuration options. Additionally, Analog Devices provides evaluation boards and software tools to help with device configuration and testing.
  • The LTC6262 is a high-speed, low-noise operational amplifier suitable for a wide range of applications, including data acquisition, signal processing, and high-speed data converters. It's commonly used in industrial, medical, and aerospace applications where high accuracy and low noise are critical.
