LTC6405CMS8E#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC6405CMS8E#PBF - Differential Amplifier, Low Noise, 1 Amplifiers, 6 mV, 1 dB, 2.7 GHz, 0 °C, 70 °C

Download LTC6405CMS8E#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

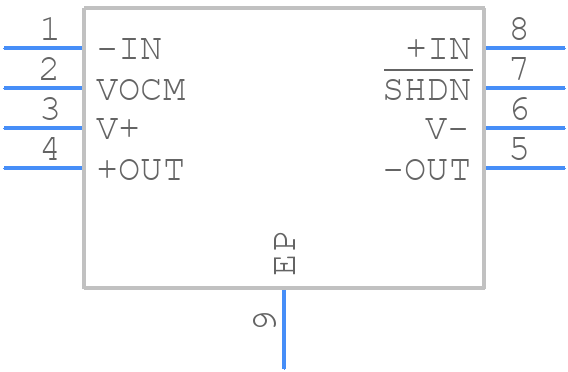

LTC6405CMS8E#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6405CMS8E#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC6405CMS8E#PBF - Analog Devices - 3D model - Small Outline Packages - MS8E Package 8-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC6405CMS8E#PBF Details

  • Manufacturer Part Number:

    LTC6405CMS8E#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1662

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC6405CMS8E#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6405 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input and output connectors. A 4-layer PCB with a dedicated ground plane is recommended. Additionally, it's essential to follow the layout guidelines provided in the datasheet and application notes.
  • To ensure proper biasing, make sure to follow the recommended voltage and current requirements for the device. The LTC6405 requires a single 5V supply, and the input and output common-mode voltages should be within the specified range. Additionally, ensure that the device is properly decoupled with capacitors and that the input and output signals are properly terminated.
  • The LTC6405 is rated for operation from -40°C to 125°C. However, it's essential to note that the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • The LTC6405 is a commercial-grade device, but Analog Devices Inc offers a high-reliability version, the LTC6405CMS8E#WPBF, which is qualified for aerospace and defense applications. This version is built with enhanced quality and reliability features, including burn-in and 100% testing.
  • To troubleshoot common issues with the LTC6405, start by verifying that the device is properly biased and that the input and output signals are within the specified range. Check for proper termination and decoupling, and ensure that the PCB layout is correct. If issues persist, consult the datasheet and application notes, or contact Analog Devices Inc's technical support for further assistance.
