LTC6409CUDB#TRMPBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC6409CUDB#TRMPBF - Differential Amplifier, Low Distortion, 1 Amplifiers, 300 µV, 10 GHz, 0 °C, 70 °C

Download LTC6409CUDB#TRMPBF Model

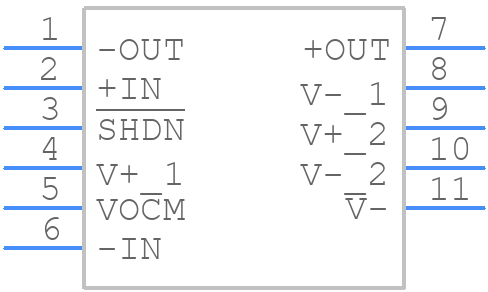

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6409CUDB#TRMPBF - Analog Devices PCB footprint - Other - Other - 10-Lead Plastic QFN
click to zoom
3D Models
LTC6409CUDB#TRMPBF - Analog Devices  - 3D model - Other - 10-Lead Plastic QFN
click to zoom

LTC6409CUDB#TRMPBF Details

  • Manufacturer Part Number:

    LTC6409CUDB#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1848

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Average Bias Current-Max (IIB):

    160 µA

  • Common-mode Reject Ratio-Min:

    75 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Voltage-Max:

    1400 µV

  • JESD-30 Code:

    R-PQCC-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Low-Bias:

    YES

  • Low-Offset:

    YES

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VQCCN

  • Package Equivalence Code:

    LCC10,.08X.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, VERY THIN PROFILE

  • Packing Method:

    TR

  • Power:

    NO

  • Programmable Power:

    NO

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.85 mm

  • Slew Rate-Nom:

    1720 V/us

  • Supply Current-Max:

    58 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Unity Gain BW-Nom:

    10000000

  • Voltage Gain-Min:

    1778.27941

  • Wideband:

    YES

  • Width:

    2 mm

LTC6409CUDB#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6409 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing the device close to the input and output connectors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, adding a small resistor (e.g., 10Ω) in series with the output can help dampen oscillations.
  • The maximum power dissipation of the LTC6409 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated to 0.7W at 85°C ambient temperature.
  • Yes, the LTC6409 can be used with a single supply voltage. However, the input common-mode range is limited to VCC-1.5V to VCC+0.5V. If the input signal is not within this range, an external level-shifting circuit may be required.
  • The gain of the LTC6409 is determined by the ratio of the feedback resistors (Rf and Rg). The gain can be calculated using the formula: Gain = Rf/Rg. For example, if Rf = 2kΩ and Rg = 1kΩ, the gain would be 2.
