LTC6419IV#PBF - Analog Devices

Description: SP Amp DIFF AMP Dual 5.25V 20-Pin LGA Tray

Download LTC6419IV#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

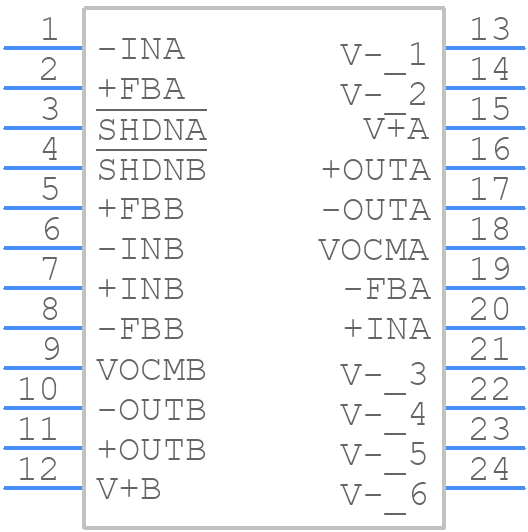

Symbol
LTC6419IV#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6419IV#PBF - Analog Devices PCB footprint - Other - Other - LTC6419IV#PBF-2
click to zoom
3D Models
LTC6419IV#PBF - Analog Devices - 3D model - Other - LTC6419IV#PBF-2
click to zoom

LTC6419IV#PBF Details

  • Manufacturer Part Number:

    LTC6419IV#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    20

  • Manufacturer Package Code:

    05-08-1519

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.33.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Amplifier Type:

    OPERATIONAL AMPLIFIER

  • Architecture:

    VOLTAGE-FEEDBACK

  • Bandwidth (3dB)-Nom:

    1400 MHz

  • Common-mode Reject Ratio-Min:

    75 dB

  • Common-mode Reject Ratio-Nom:

    90 dB

  • Frequency Compensation:

    YES

  • Input Offset Current-Max (IIO):

    10 µA

  • Input Offset Voltage-Max:

    1400 µV

  • JESD-30 Code:

    R-XQCC-N20

  • Length:

    4 mm

  • Low-Offset:

    NO

  • Micropower:

    NO

  • Moisture Sensitivity Level:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.12X.16,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TRAY

  • Power:

    NO

  • Programmable Power:

    NO

  • Seated Height-Max:

    0.8 mm

  • Slew Rate-Nom:

    1580 V/us

  • Supply Current-Max:

    116 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Unity Gain BW-Nom:

    10000000

  • Wideband:

    YES

  • Width:

    3 mm

LTC6419IV#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6419IV involves keeping the input and output traces short and symmetrical, using a solid ground plane, and placing the device close to the analog power supply. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a small series resistor (e.g., 10Ω) can be added to the output to improve stability.
  • The maximum power dissipation of the LTC6419IV is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this can be derated to 0.7W at 85°C ambient temperature.
  • Yes, the LTC6419IV can be used in a single-supply configuration. However, the input common-mode range is limited to VCC-1.5V to VCC-0.5V. Additionally, the output voltage swing will be reduced in single-supply operation. Consult the datasheet for more information on single-supply operation.
  • To filter out noise and ripple, a low-pass filter can be added to the output of the LTC6419IV. A simple RC filter with a cutoff frequency of around 10kHz to 100kHz can be effective in reducing noise and ripple. Additionally, using a high-quality output capacitor with low ESR can also help reduce noise and ripple.
