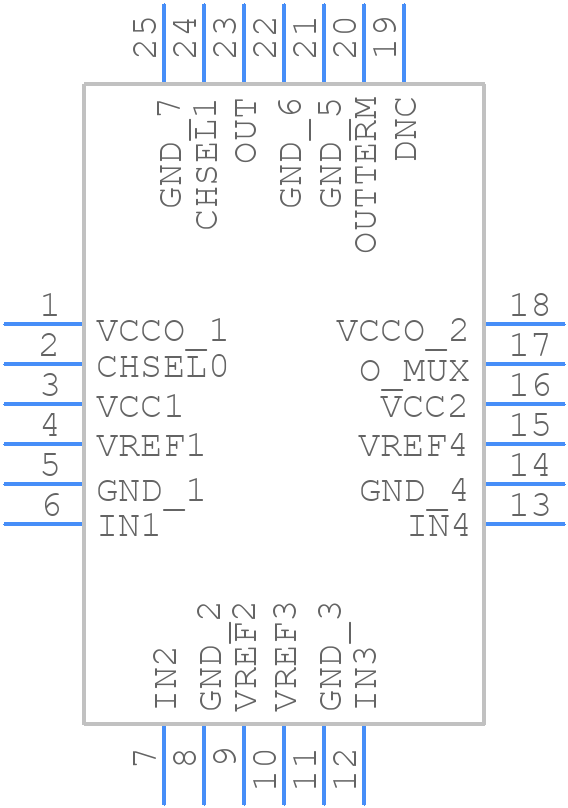

LTC6561IUF#PBF - Analog Devices

LTC6561IUF#PBF Frequently Asked Questions (FAQs)

• What is the recommended PCB layout for optimal performance of the LTC6561?
  A good PCB layout for the LTC6561 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
• How do I ensure the LTC6561 is stable and doesn't oscillate?
  To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a small series resistor (e.g., 1-2 ohms) can be added to the output to improve stability.
• What is the maximum input voltage that the LTC6561 can handle?
  The maximum input voltage that the LTC6561 can handle is 6V. Exceeding this voltage can cause damage to the device. It's recommended to add input protection circuitry, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
• Can I use the LTC6561 in a high-temperature environment?
  The LTC6561 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's performance and consider using a heat sink or thermal management techniques to keep the device within its recommended operating temperature range.
• How do I troubleshoot issues with the LTC6561, such as output voltage errors or oscillations?
  To troubleshoot issues with the LTC6561, start by verifying the input voltage, output voltage, and component values. Check for any signs of overheating, electrical overstress, or physical damage. Use an oscilloscope to observe the output waveform and look for signs of oscillation or ringing. Consult the datasheet and application notes for guidance on troubleshooting and debugging techniques.
