LTC6702HDC#TRMPBF - Analog Devices

Description: IC COMP LOW VOLT 8-DFN

Download LTC6702HDC#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

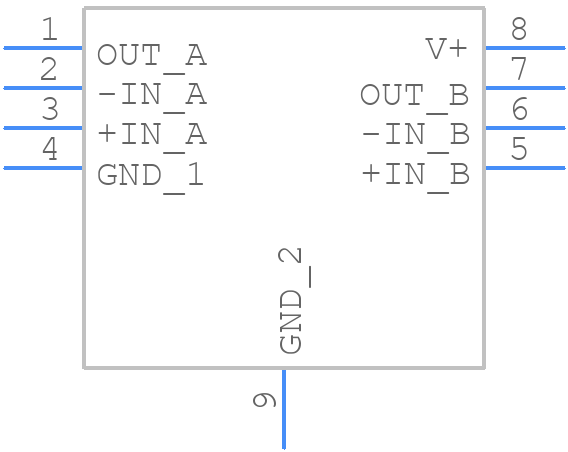

LTC6702HDC#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6702HDC#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DC(DFN)
click to zoom
3D Models
LTC6702HDC#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DC(DFN)
click to zoom

LTC6702HDC#TRMPBF Details

  • Manufacturer Part Number:

    LTC6702HDC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, LEAD FREE, PLASTIC, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    6000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    500 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    42 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC6702HDC#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6702HDC involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is properly sized, the input voltage is within the recommended range, and the device is operated within the recommended temperature range. Additionally, a minimum ESR of 50mΩ is recommended for the output capacitor.
  • The maximum output current of the LTC6702HDC is 2A. However, the device can deliver higher currents for short durations. It's essential to consider the thermal limitations and ensure the device is properly heat-sinked.
  • The LTC6702HDC is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to consider the thermal management and ensure the device is properly heat-sinked in high-temperature applications.
  • To troubleshoot issues with the LTC6702HDC, start by verifying the input voltage, output voltage, and output current. Check for any signs of overheating, and ensure the device is properly heat-sinked. Use an oscilloscope to check for any oscillations or noise on the output.
