LTC6702IDC#TRMPBF - Analog Devices

Description: Low Supply Operation: 1.7V Minimum n Low Supply Current: 30μA/Comparator Maximum n Propagation Delay: 500ns Maximum (–40°C to 125°C) n 3.2MHz Toggle Frequency n Input Voltage Range Extends 100mV Below Ground n Internal Hysteresis: 4mV n High Output Drive: TTL and CMOS Compatible Specifi ed at ±15mA (–40°C to 125°C), Capacitive Load Handling to 10,000pF n Specifi ed for –40°C to 125°C Temperature Range n Available in Low Profi le (1mm) ThinSOT™ and 2mm × 2mm DFN Packages

Download LTC6702IDC#TRMPBF Model

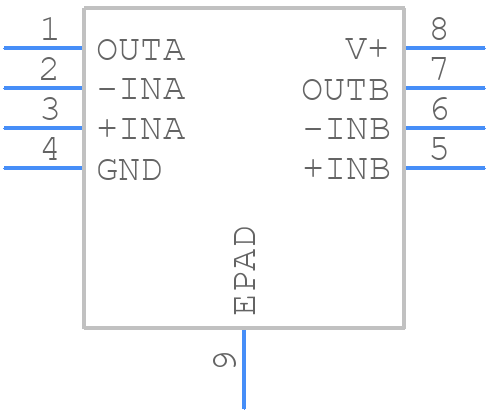

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6702IDC#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 8-dfn
click to zoom
3D Models
LTC6702IDC#TRMPBF - Analog Devices  - 3D model - Small Outline No-lead - 8-dfn
click to zoom

LTC6702IDC#TRMPBF Details

  • Manufacturer Part Number:

    LTC6702IDC#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    2 X 2 MM, LEAD FREE, PLASTIC, DFN-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1719

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Input Offset Voltage-Max:

    5000 µV

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e3

  • Length:

    2 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    PUSH-PULL

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC8,.08,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Response Time-Nom:

    500 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    42 mA

  • Supply Voltage Limit-Max:

    6 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC6702IDC#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6702 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is of high quality and has a low ESR. Additionally, a minimum of 10uF output capacitance is recommended.
  • The maximum input voltage that the LTC6702 can handle is 12V. Exceeding this voltage may damage the device.
  • The LTC6702 is rated for operation up to 125°C. However, the device's performance may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the LTC6702, start by checking the input voltage, output voltage, and output current. Verify that the device is properly soldered and that the PCB layout is correct. Check for any signs of overheating or physical damage.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6702IDC#TRMPBF Overview

Use the download button to access the LTC6702IDC#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC67, or try a keyword search, such as Comparators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to LTC6702IDC#TRMPBF

Showing 0 results

LTC6702IDC#TRMPBF Alternates

Showing results

Image Part Number Model
Part Image LTC6702CDC#TRMPBF Analog Devices Inc

Comparator, 2 Func, 5000uV Offset-Max, 500ns Response Time, CMOS, PDSO8

Part Image LTC6702HDC#TRPBF Analog Devices Inc

Comparator, 2 Func, 6000uV Offset-Max, 500ns Response Time, CMOS, PDSO8

Part Image LTC6702CDC#PBF Linear Technology

Comparator, 2 Func, 5000uV Offset-Max, 500ns Response Time, CMOS, PDSO8

Part Image LTC6702HDC#PBF Linear Technology

Comparator, 2 Func, 6000uV Offset-Max, 500ns Response Time, CMOS, PDSO8

Part Image LTC6702CDC#PBF Analog Devices Inc

Comparator, 2 Func, 5000uV Offset-Max, 500ns Response Time, CMOS, PDSO8

For a full list of alternate parts for LTC6702IDC#TRMPBF, check out Findchips.com
