LTC6752HMS8-2#PBF - Analog Devices

Description: Analog Comparators 280MHz CMOS Comparator with Latch, Output Supply and Shutdown

Download LTC6752HMS8-2#PBF Model

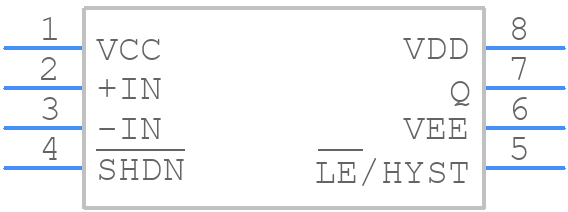

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6752HMS8-2#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev F)
click to zoom
3D Models
LTC6752HMS8-2#PBF - Analog Devices  - 3D model - Small Outline Packages - MS8 Package 8-Lead Plastic MSOP (Reference LTC DWG # 05-08-1660 Rev F)
click to zoom

LTC6752HMS8-2#PBF Details

  • Manufacturer Part Number:

    LTC6752HMS8-2#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-8

  • Pin Count:

    8

  • Manufacturer Package Code:

    05-08-1660

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    2.1 µA

  • Bias Current-Max (IIB) @25C:

    1.25 µA

  • Input Offset Voltage-Max:

    8500 µV

  • JESD-30 Code:

    S-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.19

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Response Time-Nom:

    2.9 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC6752HMS8-2#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6752HMS8-2 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the input and output capacitors are of high quality and have low equivalent series resistance (ESR). Also, avoid using long input and output traces, and keep the device away from noise sources.
  • The maximum power dissipation of the LTC6752HMS8-2 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated based on the actual operating conditions.
  • The LTC6752HMS8-2 is rated for operation up to 125°C junction temperature. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's power dissipation and ensure proper heat sinking to maintain a safe operating temperature.
  • To troubleshoot issues with the LTC6752HMS8-2, start by verifying the power supply voltage and ensuring that it's within the recommended range. Check the input and output voltages, and ensure that the device is properly biased. Use an oscilloscope to check for oscillations or other anomalies. If the issue persists, consult the datasheet and application notes for guidance.
