LTC6752HUD-3#PBF - Analog Devices

Description: COMPARATORS, SINGLE, 3.4NS, QFN-12; Comparator Type:High Speed; No. of Comparators:1 Comparator; Response Time:3.4ns; Supply Voltage Range:2.45V to 5.25V; Comparator Case Style:QFN; No. of Pins:12Pins; IC Output Type:Complementary RoHS Compliant: Yes

Download LTC6752HUD-3#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

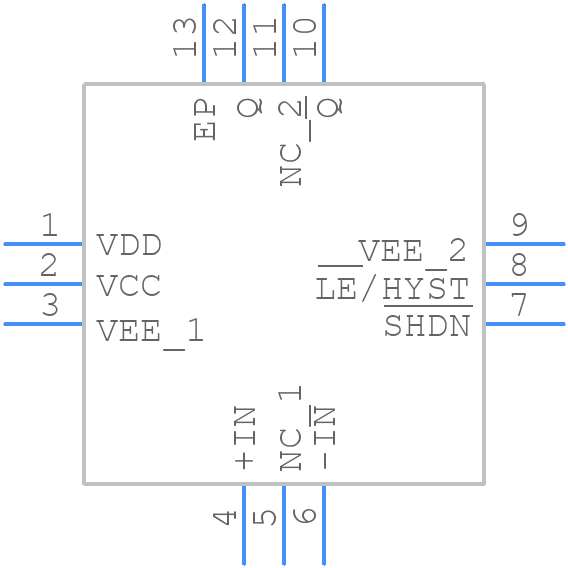

Symbol
LTC6752HUD-3#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6752HUD-3#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UD Package 12-Lead Plastic QFN (3mm × 3mm)
click to zoom
3D Models
LTC6752HUD-3#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UD Package 12-Lead Plastic QFN (3mm × 3mm)
click to zoom

LTC6752HUD-3#PBF Details

  • Manufacturer Part Number:

    LTC6752HUD-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1855

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Amplifier Type:

    COMPARATOR

  • Average Bias Current-Max (IIB):

    2.1 µA

  • Bias Current-Max (IIB) @25C:

    1.25 µA

  • Input Offset Voltage-Max:

    8500 µV

  • JESD-30 Code:

    S-PQCC-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Type:

    OPEN-DRAIN

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC12,.12SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Response Time-Nom:

    2.9 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    2.5 mA

  • Supply Voltage Limit-Max:

    5.5 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    3 mm

LTC6752HUD-3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6752HUD-3#PBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, ensure that the output capacitor is properly sized and placed close to the device, and that the input capacitor is properly bypassed. Also, ensure that the device is operated within its recommended operating conditions and that the power supply is well-regulated.
  • The maximum allowed power dissipation for the LTC6752HUD-3#PBF is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature.
  • The LTC6752HUD-3#PBF is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's power dissipation and ensure proper thermal management in high-temperature environments.
  • To troubleshoot issues with the LTC6752HUD-3#PBF, start by verifying that the device is properly powered and that the input and output voltages are within the recommended operating range. Check for proper PCB layout and decoupling, and ensure that the device is not overheating. Use an oscilloscope to check for oscillations or other anomalies in the output waveform.
