LTC6820HMS#3ZZPBF - Analog Devices

Description: Interface - Specialized isoSPI Iso Communications Int

Download LTC6820HMS#3ZZPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

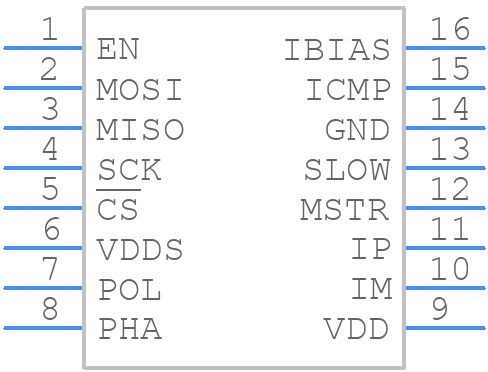

LTC6820HMS#3ZZPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6820HMS#3ZZPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP_2023
click to zoom
3D Models
LTC6820HMS#3ZZPBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP_2023
click to zoom

LTC6820HMS#3ZZPBF Details

  • Manufacturer Part Number:

    LTC6820HMS#3ZZPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-05-09

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Interface IC Type:

    INTERFACE CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.7 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC6820HMS#3ZZPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6820 involves keeping the analog and digital grounds separate, using a solid ground plane, and minimizing the length of the input traces. A 4-layer PCB with a dedicated analog ground plane is recommended.
  • To ensure accuracy, use a high-precision voltage reference, such as the LTC6655, and ensure that the input voltage is within the specified range. Also, use a low-noise, low-impedance power supply and minimize noise coupling into the input traces.
  • The maximum cable length for the differential input signals depends on the specific application and the noise environment. As a general guideline, keep the cable length as short as possible (less than 10 inches) and use shielded twisted-pair cables to minimize noise pickup.
  • Use external overvoltage protection devices, such as TVS diodes or zener diodes, to protect the LTC6820 from voltage transients and surges. Ensure that the protection devices are rated for the maximum expected voltage and current.
  • Power up the LTC6820 in the following sequence: VCC, then AVCC, then the analog input voltage. This ensures that the internal voltage regulators are powered up correctly and minimizes the risk of latch-up or damage.
