LTC6820HMS#TRPBF footprint, schematic symbol and 3D model by Analog Devices

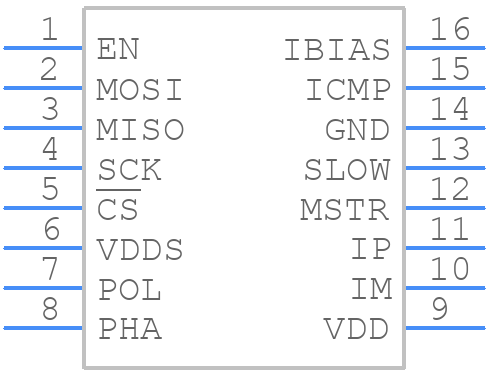

Symbol

click to zoom

PCB Footprints

LTC6820HMS#TRPBF - Analog Devices PCB footprint - Other - Other - LTC6820HMS#TRPBF-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC6820HMS#TRPBF
Part Number LTC6820HMS#TRPBF
Manufacturer Analog Devices
Pin Count 16
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - LTC6820HMS#TRPBF-2
Released Date Jan 31, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

LTC6820HMS#TRPBF Details

Manufacturer Part Number:
LTC6820HMS#TRPBF
Brand Name:
Analog Devices Inc
Pbfree Code:
No
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
MSOP-16
Pin Count:
16
Manufacturer Package Code:
05-08-1669
Country Of Origin:
Thailand
ECCN Code:
EAR99
HTS Code:
8542.39.00.01
Manufacturer:
Analog Devices Inc
YTEOL:
10
Interface IC Type:
INTERFACE CIRCUIT
JESD-30 Code:
R-PDSO-G16
JESD-609 Code:
e3
Length:
4.039 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.1 mm
Supply Voltage-Max:
5.5 V
Supply Voltage-Min:
2.7 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
GULL WING
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm

LTC6820HMS#TRPBF Frequently Asked Questions (FAQs)

A good PCB layout for the LTC6820HMS involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
To optimize the performance of the LTC6820HMS in a noisy environment, use a low-pass filter at the input, add a ferrite bead or a common-mode choke to the input lines, and use a shielded enclosure to reduce electromagnetic interference (EMI).
The maximum operating temperature range for the LTC6820HMS is -40°C to 125°C. However, the device can be operated at a reduced temperature range of -20°C to 85°C for optimal performance.
Yes, the LTC6820HMS is suitable for high-reliability applications. It is manufactured using a high-reliability process, and it has undergone rigorous testing to ensure its performance and reliability.
To troubleshoot issues with the LTC6820HMS, start by checking the power supply voltage, input and output connections, and the PCB layout. Use an oscilloscope to check the input and output waveforms, and consult the datasheet and application notes for troubleshooting guidelines.
