LTC6902CMS#PBF - Analog Devices

Description: Programmable oscillator,5K-20MHz LTC6902CMS#PBF, Voltage Controlled Oscillator,, 10-Pin MSOP-10 3x3mm

Download LTC6902CMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

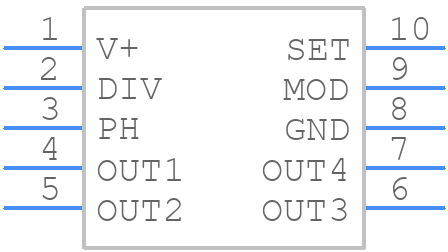

LTC6902CMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6902CMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS 10 MSOP2
click to zoom
3D Models
LTC6902CMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS 10 MSOP2
click to zoom

LTC6902CMS#PBF Details

  • Manufacturer Part Number:

    LTC6902CMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER
