LTC6902CMS#TRPBF - Analog Devices

Description: Standard Clock Oscillators Multiphase 5kHz - 20MHz Oscillator w/ SSFM

Download LTC6902CMS#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

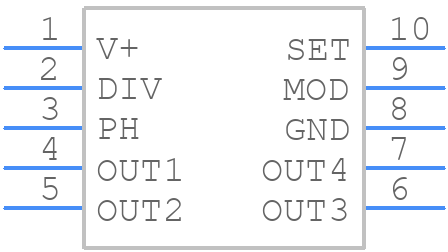

LTC6902CMS#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6902CMS#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS 10 MSOP
click to zoom
3D Models
LTC6902CMS#TRPBF - Analog Devices - 3D model - Small Outline Packages - MS 10 MSOP
click to zoom

LTC6902CMS#TRPBF Details

  • Manufacturer Part Number:

    LTC6902CMS#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP, 10 PIN

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1661

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Analog IC - Other Type:

    PLL FREQUENCY SYNTHESIZER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    70 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    3.6 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC6902CMS#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6902CMS involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and parasitic inductance.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and add a small capacitor (e.g., 10nF) between the VCC and GND pins to filter out noise. Also, avoid using long traces and minimize the distance between the device and the output capacitors.
  • The maximum power dissipation of the LTC6902CMS is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated at higher temperatures.
  • While the LTC6902CMS is primarily a clock synthesizer, it can be used as a voltage regulator in certain applications. However, it's essential to ensure that the output voltage is within the recommended range (1.5V to 3.3V) and that the device is properly bypassed to prevent oscillations.
  • The LTC6902CMS can be programmed using a three-wire serial interface. The device has a 10-bit frequency control register that allows the user to set the output frequency. The datasheet provides a detailed description of the programming sequence and the frequency calculation formula.
