Part Image

LTC6909CMS#PBF - Analog Devices

Description: Silicon Oscillators 1 to 8 Out, MP Silicon Osc w/ SS Mod 0°C ~ 70°C

Download LTC6909CMS#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

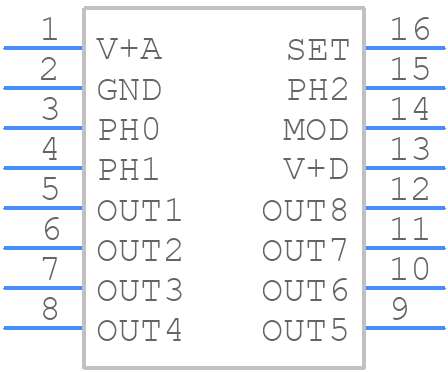

Symbol
LTC6909CMS#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6909CMS#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MS Package 16-Lead Plastic MSOP_2025
click to zoom
3D Models
LTC6909CMS#PBF - Analog Devices - 3D model - Small Outline Packages - MS Package 16-Lead Plastic MSOP_2025
click to zoom

LTC6909CMS#PBF Details

  • Manufacturer Part Number:

    LTC6909CMS#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    LEAD FREE, PLASTIC, MSOP-16

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1669

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Analog IC - Other Type:

    ANALOG CIRCUIT

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC6909CMS#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6909CMS involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power supply bypass capacitors. A 4-layer PCB with a dedicated ground plane is recommended.
  • The choice of external components such as resistors, capacitors, and inductors depends on the specific application and desired performance. Refer to the datasheet and application notes for guidance on selecting the right components for your design.
  • The maximum power dissipation of the LTC6909CMS is dependent on the operating conditions and package type. Refer to the datasheet for the specific power dissipation limits for your application.
  • The LTC6909CMS is rated for operation up to 125°C. However, the device's performance and reliability may be affected at high temperatures. Consult the datasheet and application notes for guidance on using the device in high-temperature environments.
  • Troubleshooting issues with the LTC6909CMS involves identifying the symptoms, checking the power supply and input signals, verifying the PCB layout and component selection, and consulting the datasheet and application notes for guidance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6909CMS#PBF Overview

Use the download button to access the LTC6909CMS#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69, or try a keyword search, such as Other Signal Circuits

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
