- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for LTC6957HMS-1#PBF
- Part Number LTC6957HMS-1#PBF
- Manufacturer Analog Devices
- Pin Count 12
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 12-Lead Plastic MSOP
- Released Date Apr 10, 2025
- Last Modified Date Apr 10, 2025 3:26 AM UTC
- Pinout / Pin List Click Here (Member Only)
LTC6957HMS-1#PBF Details
-
Manufacturer Part Number:
LTC6957HMS-1#PBF
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Package Description:
MSOP-12
-
Pin Count:
12
-
Manufacturer Package Code:
05-08-1668
-
Country Of Origin:
Malaysia
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Manufacturer:
Analog Devices Inc
LTC6957HMS-1#PBF Frequently Asked Questions (FAQs)
-
A good PCB layout for the LTC6957HMS-1#PBF involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
-
To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 0.1uF capacitor to ground. The VEE pin should be connected to a negative voltage source or ground, depending on the application. The bias voltage should be within the recommended range of 2.7V to 5.5V.
-
The maximum power dissipation of the LTC6957HMS-1#PBF is 1.4W. However, this can be affected by the operating frequency, supply voltage, and ambient temperature. It's essential to ensure proper thermal management to prevent overheating.
-
The LTC6957HMS-1#PBF is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's essential to ensure proper thermal management and consider the device's thermal characteristics when designing for high-temperature applications.
-
Common issues with the LTC6957HMS-1#PBF include oscillations, instability, or incorrect output voltage. To troubleshoot, check the PCB layout, decoupling, and biasing. Verify that the input and output voltages are within the recommended range, and ensure that the device is properly terminated. Consult the datasheet and application notes for more information.
Trust Checks
System Verified
LTC6957HMS-1#PBF Overview

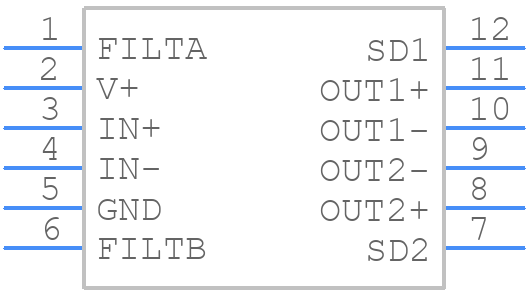

Use the download button to access the LTC6957HMS-1#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69,
or try a keyword search, such as Clock Drivers
