LTC6957HMS-4#PBF - Analog Devices

Description: Clock Buffer Low Phase Noise, Dual Output Buffer/Driver/Logic Converter with Complementary CMOS Outputs

Download LTC6957HMS-4#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

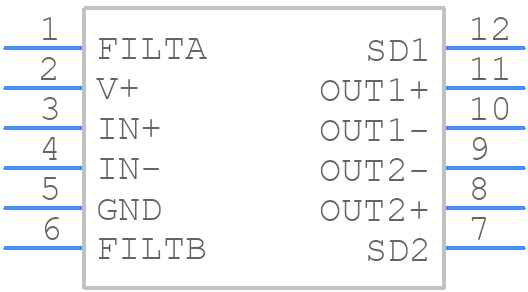

Symbol
LTC6957HMS-4#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6957HMS-4#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP
click to zoom
3D Models
LTC6957HMS-4#PBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP
click to zoom

LTC6957HMS-4#PBF Details

  • Manufacturer Part Number:

    LTC6957HMS-4#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1668

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Family:

    6957

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Power Supply Current-Max (ICC):

    27.5 mA

  • Prop. Delay@Nom-Sup:

    4.8 ns

  • Propagation Delay (tpd):

    4.8 ns

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC6957HMS-4#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6957HMS-4 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a low-ESR capacitor for the VCC pin and to decouple the VCC pin with a 0.1uF capacitor.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor is properly sized and that the device is operated within its recommended operating conditions. If oscillations occur, try adding a small capacitor (e.g., 10pF) between the output and ground.
  • The maximum power dissipation of the LTC6957HMS-4 is dependent on the ambient temperature and the thermal resistance of the package. According to the datasheet, the maximum power dissipation is 1.4W at 25°C ambient temperature. However, this value can be derated at higher temperatures.
  • The LTC6957HMS-4 is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the power dissipation and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the LTC6957HMS-4, start by verifying the power supply voltage, checking for proper component values and PCB layout, and ensuring that the device is operated within its recommended operating conditions. Use an oscilloscope to check the output waveform and look for signs of oscillation or instability.
