LTC6957IDD-3#PBF - Analog Devices

Description: Clock Buffer Low Phase Noise, Dual Output Buffer/Driver/Logic Converter with CMOS Outputs

Download LTC6957IDD-3#PBF Model

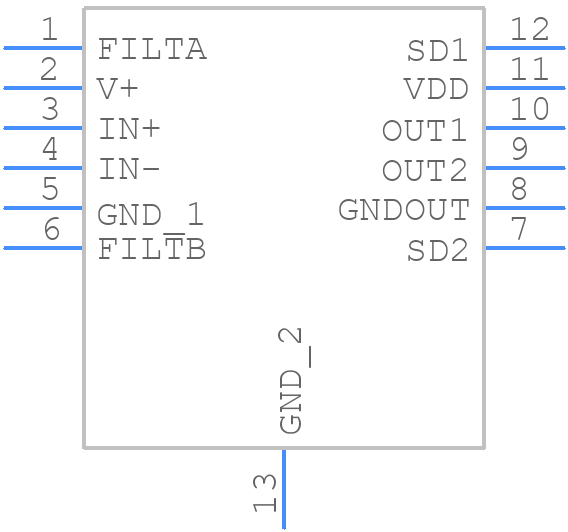

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6957IDD-3#PBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3mm)
click to zoom
3D Models
LTC6957IDD-3#PBF - Analog Devices  - 3D model - Small Outline No-lead - 12-Lead Plastic DFN (3mm × 3mm)
click to zoom

LTC6957IDD-3#PBF Details

  • Manufacturer Part Number:

    LTC6957IDD-3#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    DFN-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1725

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    0

  • Family:

    6957

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PDSO-N12

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC12,.12,18

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    27.5 mA

  • Prop. Delay@Nom-Sup:

    4.8 ns

  • Propagation Delay (tpd):

    4.8 ns

  • Same Edge Skew-Max (tskwd):

    0.035 ns

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    3.45 V

  • Supply Voltage-Min (Vsup):

    3.15 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.45 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

LTC6957IDD-3#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6957IDD-3#PBF involves keeping the analog and digital grounds separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated layer for the analog signals, and to keep the clock and data lines as short as possible.
  • The LTC6957IDD-3#PBF requires a single 3.3V power supply, and it's recommended to use a low-noise, low-dropout regulator to power the device. The power sequencing requirement is to power up the device after the power supply has stabilized, and to ensure that the power supply can provide the required current.
  • The LTC6957IDD-3#PBF has a maximum junction temperature of 150°C, and it's recommended to keep the device temperature below 85°C for optimal performance. To ensure the device doesn't overheat, use a heat sink or a thermal pad, and ensure good airflow around the device. Additionally, reduce the power consumption by optimizing the clock frequency and using the power-down mode when not in use.
  • To configure the LTC6957IDD-3#PBF for optimal clock jitter performance, use a high-quality clock source, and ensure the clock signal is clean and stable. Additionally, use the device's internal clock multiplier to generate the desired clock frequency, and adjust the clock phase alignment to minimize jitter.
  • The LTC6957IDD-3#PBF is a high-frequency device and requires proper EMI and RFI shielding to ensure compliance with regulatory requirements. Use a metal shield or a shielded enclosure to contain the EMI, and ensure the device is placed away from other noise-sensitive components. Additionally, use EMI filters and common-mode chokes to reduce emissions.
