LTC6991CDCB#TRMPBF - Analog Devices

Description: Oscillator, Silicon IC 29.1µHz ~ 977Hz 6-DFN (2x3) , 2.25V ~ 5.5V, 0°C ~ 70°C

Download LTC6991CDCB#TRMPBF Model

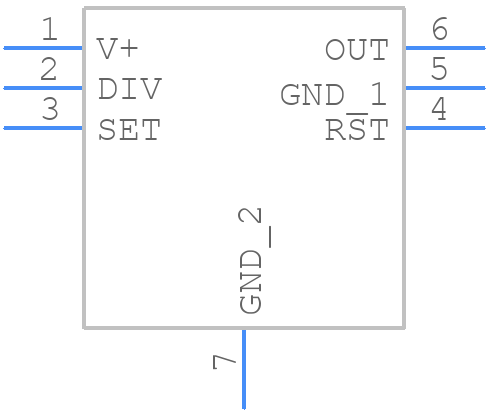

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
LTC6991CDCB#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DCB Package 6-Lead Plastic DFN (2mm × 3mm)
click to zoom
3D Models
LTC6991CDCB#TRMPBF - Analog Devices  - 3D model - Small Outline No-lead - DCB Package 6-Lead Plastic DFN (2mm × 3mm)
click to zoom

LTC6991CDCB#TRMPBF Details

  • Manufacturer Part Number:

    LTC6991CDCB#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1715

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ENABLE/DISABLE FUNCTION

  • Control Voltage-Max:

    5.5 V

  • Frequency Adjustment-Mechanical:

    NO

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    0.000977 MHz

  • Operating Temperature-Max:

    70 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    5 KOHM, 5 pF

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    TSSOP6,.8

  • Physical Dimension:

    3.0mm x 2.0mm x 0.75mm

  • Supply Current-Max:

    0.17 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    50/50 %

  • Terminal Finish:

    Matte Tin (Sn)

LTC6991CDCB#TRMPBF Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC first, followed by the input voltage (VIN) and then the clock signal (CLK). This ensures proper initialization of the device.
  • To ensure a stable state during power-up, it is recommended to add a power-on reset (POR) circuit to the VCC pin. This will ensure that the device is in a known state during power-up.
  • The maximum clock frequency that can be used with the LTC6991 is 100MHz. However, the actual clock frequency limit may be lower depending on the specific application and layout.
  • To minimize jitter in the output signal, it is recommended to use a high-quality clock source, minimize noise on the power supply lines, and use a low-jitter oscillator circuit.
  • Yes, the LTC6991 can be used with a different voltage supply between 2.7V and 5.5V. However, the device's performance and specifications may vary depending on the supply voltage.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6991CDCB#TRMPBF Overview

Use the download button to access the LTC6991CDCB#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69, or try a keyword search, such as Voltage Controlled Oscillators

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
