LTC6992IDCB-3#TRMPBF - Analog Devices

Description: Switching Controllers TimerBlox: V-Controlled Pulse Width Mod

Download LTC6992IDCB-3#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

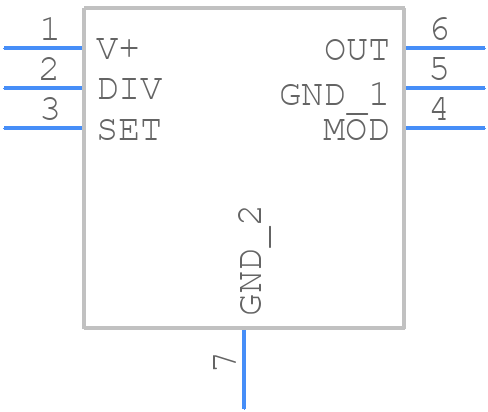

LTC6992IDCB-3#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6992IDCB-3#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DCB Package 6-Lead Plastic DFN (2mm × 3mm)
click to zoom
3D Models
LTC6992IDCB-3#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DCB Package 6-Lead Plastic DFN (2mm × 3mm)
click to zoom

LTC6992IDCB-3#TRMPBF Details

  • Manufacturer Part Number:

    LTC6992IDCB-3#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1715

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Control Voltage-Max:

    0.9 V

  • Control Voltage-Min:

    0.1 V

  • JESD-609 Code:

    e3

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Max:

    1 MHz

  • Operating Frequency-Min:

    0.00000318 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    VOLTAGE CONTROLLED OSCILLATOR

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    SOLCC6,.12

  • Physical Dimension:

    3.0mm x 2.0mm x 0.75mm

  • Supply Current-Max:

    0.45 mA

  • Supply Voltage-Max:

    5.5 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn) - annealed

LTC6992IDCB-3#TRMPBF Frequently Asked Questions (FAQs)

  • The recommended layout and routing for the LTC6992IDCB-3 can be found in the 'Layout Considerations' section of the datasheet. Additionally, Analog Devices provides a layout guide and a demo board that can be used as a reference.
  • The choice of external components such as resistors, capacitors, and inductors depends on the specific application and frequency of operation. The datasheet provides guidelines and equations to help select the correct components. Additionally, Analog Devices provides a component selection guide and a web-based calculator tool to aid in the selection process.
  • The maximum power dissipation of the LTC6992IDCB-3 is dependent on the operating conditions and package type. The datasheet provides a power dissipation calculation formula and a thermal resistance table to help determine the maximum power dissipation. Typically, the maximum power dissipation is around 1.4W for the DFN package.
  • The LTC6992IDCB-3 has a SYNC input pin that can be used to synchronize multiple devices. The datasheet provides guidelines on how to use the SYNC pin to synchronize multiple devices. Additionally, Analog Devices provides an application note that provides more detailed information on synchronizing multiple devices.
  • The minimum input voltage range for the LTC6992IDCB-3 is 2.7V and the maximum input voltage range is 5.5V. However, the recommended operating range is 3.3V ±10% to ensure optimal performance and reliability.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6992IDCB-3#TRMPBF Overview

Use the download button to access the LTC6992IDCB-3#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69, or try a keyword search, such as Other Signal Circuits
