LTC6993CDCB-3#TRMPBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC6993CDCB-3#TRMPBF - Pulse Generator IC, Range 1µs to 33.6 Seconds, Monostable, 2.25 V to 5.5 V, DFN-6

Download LTC6993CDCB-3#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

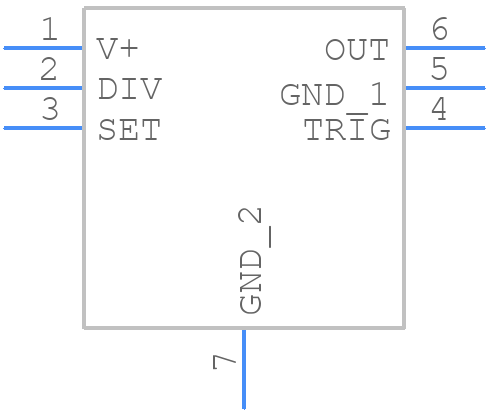

Symbol
LTC6993CDCB-3#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6993CDCB-3#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DCB 6-Lead Plastic DFN
click to zoom
3D Models
LTC6993CDCB-3#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DCB 6-Lead Plastic DFN
click to zoom

LTC6993CDCB-3#TRMPBF Details

  • Manufacturer Part Number:

    LTC6993CDCB-3#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1715

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Family:

    6993

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC6993CDCB-3#TRMPBF Frequently Asked Questions (FAQs)

  • The recommended power-up sequence is to apply VCC before applying the input signal. This ensures that the internal biasing and references are established before the input signal is applied.
  • To ensure a stable state during power-up, it is recommended to add a 10uF capacitor between the VCC pin and GND, and a 100nF capacitor between the VIN pin and GND. This helps to filter out any noise and ensures a stable power-up sequence.
  • The LTC6993 can handle input frequencies up to 100MHz. However, the device's performance may degrade at higher frequencies, and the output may not be accurate. It is recommended to use a lower frequency input signal for optimal performance.
  • The output voltage of the LTC6993 can be adjusted by using an external resistor divider network between the VOUT pin and GND. The ratio of the resistors determines the output voltage. A higher ratio results in a higher output voltage, and a lower ratio results in a lower output voltage.
  • The maximum output current of the LTC6993 is 20mA. Exceeding this current limit may cause the device to overheat or malfunction. It is recommended to use an external buffer or amplifier if a higher output current is required.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC6993CDCB-3#TRMPBF Overview

Use the download button to access the LTC6993CDCB-3#TRMPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC69, or try a keyword search, such as Prescaler/Multivibrators
