LTC6993CDCB-4#TRMPBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC6993CDCB-4#TRMPBF - Pulse Generator IC, Range 1µs to 33.6 Seconds, Monostable, 2.25 V to 5.5 V, DFN-6

Download LTC6993CDCB-4#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

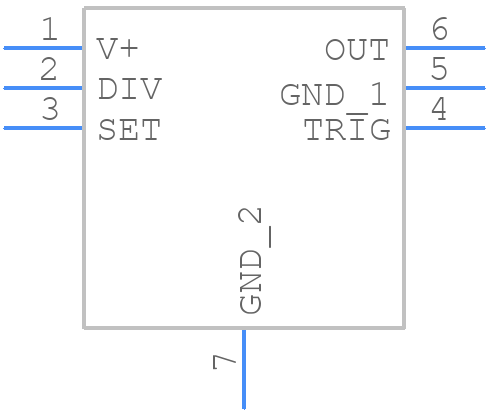

LTC6993CDCB-4#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6993CDCB-4#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DCB 6-Lead Plastic DFN
click to zoom
3D Models
LTC6993CDCB-4#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - DCB 6-Lead Plastic DFN
click to zoom

LTC6993CDCB-4#TRMPBF Details

  • Manufacturer Part Number:

    LTC6993CDCB-4#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-6

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1715

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Family:

    6993

  • JESD-30 Code:

    R-PDSO-N6

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Logic IC Type:

    MONOSTABLE MULTIVIBRATOR

  • Moisture Sensitivity Level:

    1

  • Number of Data/Clock Inputs:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    70 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC6,.12,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    COMMERCIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2 mm

LTC6993CDCB-4#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC6993 involves keeping the input and output traces short and away from each other, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor is properly sized and placed close to the output pin. Additionally, adding a small series resistor (e.g., 10Ω) between the output pin and the output capacitor can help dampen oscillations.
  • The maximum output current of the LTC6993 is 100mA. However, it's recommended to derate the output current to 50mA or less to ensure reliable operation and to prevent overheating.
  • While the LTC6993 can be used as a voltage regulator, it's not its primary intended use. The device is designed as a voltage-controlled oscillator (VCO) and is optimized for frequency modulation applications. If you need a voltage regulator, it's recommended to use a dedicated voltage regulator IC.
  • The LTC6993 can be programmed to generate a specific frequency by applying a control voltage to the VCTRL pin. The frequency is proportional to the control voltage, and the relationship is described in the datasheet. You can use a voltage divider or a DAC to generate the required control voltage.
