LTC6994IS6-1#WTRMPBF - Analog Devices

Description: Delay Line IC Programmable 8 Tap 1µs ~ 33.6s SOT-23-6 Thin, TSOT-23-6

Download LTC6994IS6-1#WTRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

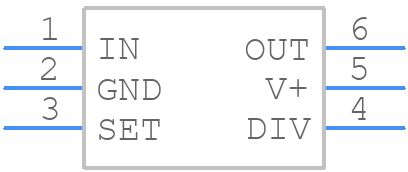

LTC6994IS6-1#WTRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC6994IS6-1#WTRMPBF - Analog Devices PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - S6 Package 6-Lead Plastic TSOT-23 LTC DWG # 05-08-1636
click to zoom
3D Models
LTC6994IS6-1#WTRMPBF - Analog Devices - 3D model - SOT23 (6-Pin) - S6 Package 6-Lead Plastic TSOT-23 LTC DWG # 05-08-1636
click to zoom

LTC6994IS6-1#WTRMPBF Details

  • Manufacturer Part Number:

    LTC6994IS6-1#WTRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    TSOT-23, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    05-08-1636

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2019-11-26

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • Family:

    6994

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Length:

    2.9 mm

  • Load Capacitance (CL):

    5 pF

  • Logic IC Type:

    SILICON DELAY LINE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Taps/Steps:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VSSOP

  • Package Equivalence Code:

    TSOP6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, VERY THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 7 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    0.2 mA

  • Programmable Delay Line:

    YES

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.25 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Width:

    1.625 mm

LTC6994IS6-1#WTRMPBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC6994IS6-1 involves keeping the input and output pins away from each other, using a ground plane to reduce noise, and placing the device close to the power supply decoupling capacitors. A detailed layout guide can be found in the LTC6994 demo board manual.
  • To ensure the LTC6994IS6-1 is stable and oscillating correctly, make sure to follow the recommended component values and layout guidelines, and verify the oscillator frequency using a spectrum analyzer or oscilloscope. Also, ensure that the power supply is clean and well-regulated, and that the device is operated within its recommended operating conditions.
  • The maximum frequency deviation that can be achieved with the LTC6994IS6-1 depends on the specific application and the values of the external components. However, in general, the device can achieve frequency deviations of up to ±20% of the center frequency, with a maximum frequency range of 1kHz to 33.5MHz.
  • The LTC6994IS6-1 can be programmed to generate a specific frequency or frequency range using an external resistor and capacitor network. The frequency can be calculated using the formulas provided in the datasheet, and the device can be programmed using a variety of methods, including using a microcontroller or a dedicated programming device.
  • The power consumption of the LTC6994IS6-1 depends on the specific application and the values of the external components. However, in general, the device has a typical power consumption of 2.5mA at 3.3V. To minimize power consumption, use a low-power mode, reduce the oscillator frequency, and optimize the external component values for the specific application.
