LTC7004EMSE#PBF - Analog Devices

Description: LINEAR TECHNOLOGY - LTC7004EMSE#PBF - MOSFET DRIVER, HIGH SIDE, MSOP-10

Download LTC7004EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

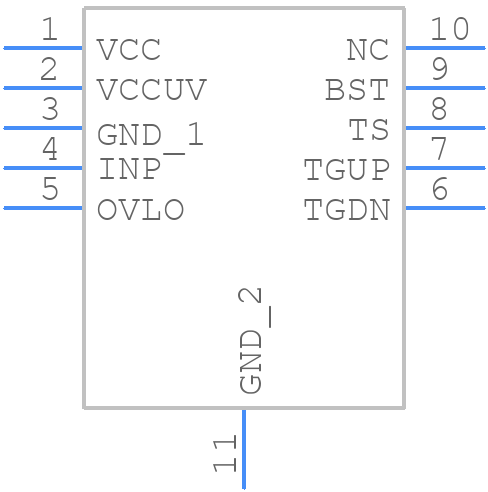

LTC7004EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7004EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package LTC DWG 10-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom
3D Models
LTC7004EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package LTC DWG 10-Lead Plastic MSOP, Exposed Die Pad_1
click to zoom

LTC7004EMSE#PBF Details

  • Manufacturer Part Number:

    LTC7004EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Nom:

    7 V

  • Supply Voltage1-Max:

    15 V

  • Supply Voltage1-Min:

    3.5 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.07 µs

  • Turn-on Time:

    0.07 µs

  • Width:

    3 mm

LTC7004EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7004EMSE#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and ensure optimal performance.
  • To ensure the LTC7004EMSE#PBF is properly biased, make sure to connect the VCC pin to a stable voltage source, and the GND pin to a solid ground plane. Also, ensure that the input voltage is within the recommended range of 2.7V to 5.5V, and that the output voltage is properly terminated with a load resistor.
  • The maximum operating temperature range for the LTC7004EMSE#PBF is -40°C to 125°C. However, it's recommended to operate the device within a temperature range of 0°C to 70°C for optimal performance and reliability.
  • Yes, the LTC7004EMSE#PBF is suitable for high-reliability and high-temperature applications. However, it's recommended to follow the recommended operating conditions and derating guidelines to ensure optimal performance and reliability.
  • To troubleshoot common issues with the LTC7004EMSE#PBF, start by checking the PCB layout and ensuring that the device is properly biased and terminated. Check for any signs of oscillations or instability, and verify that the input and output voltages are within the recommended range. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines.
