LTC7004IMSE#TRPBF - Analog Devices

Description: Driver 1-OUT High Side Non-Inv 10-Pin MSOP EP T/R

Download LTC7004IMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

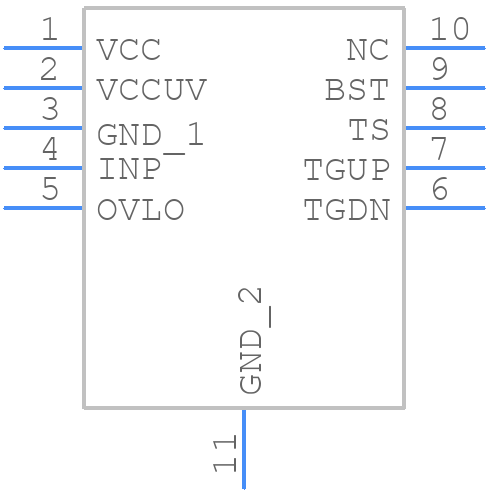

LTC7004IMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7004IMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 10-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC7004IMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - 10-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC7004IMSE#TRPBF Details

  • Manufacturer Part Number:

    LTC7004IMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1664

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    PUSH-PULL

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.05 mA

  • Supply Voltage-Max:

    60 V

  • Supply Voltage-Nom:

    7 V

  • Supply Voltage1-Max:

    15 V

  • Supply Voltage1-Min:

    3.5 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.07 µs

  • Turn-on Time:

    0.07 µs

  • Width:

    3 mm

LTC7004IMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7004 involves keeping the input and output traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the input and output capacitors are of high quality and have low ESR. Additionally, a minimum of 10uF input capacitance is recommended.
  • The LTC7004 is rated for operation from -40°C to 125°C. However, the device's performance may degrade at higher temperatures, and the maximum junction temperature should not exceed 150°C.
  • Yes, the LTC7004 is available in a variety of grades, including the 'M' grade which is qualified for high-reliability applications. However, it's essential to consult with Analog Devices' sales team to determine the suitability of the device for your specific application.
  • To troubleshoot issues, start by verifying the input voltage, output voltage, and current. Check for any signs of overheating, and ensure that the device is properly soldered and connected. Use an oscilloscope to check for any oscillations or noise on the output. Consult the datasheet and application notes for more troubleshooting tips.
