LTC7060HMSE#PBF - Analog Devices

Description: 100V Half-Bridge Driver with Floating Grounds and Adjustable Dead-Time

Download LTC7060HMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

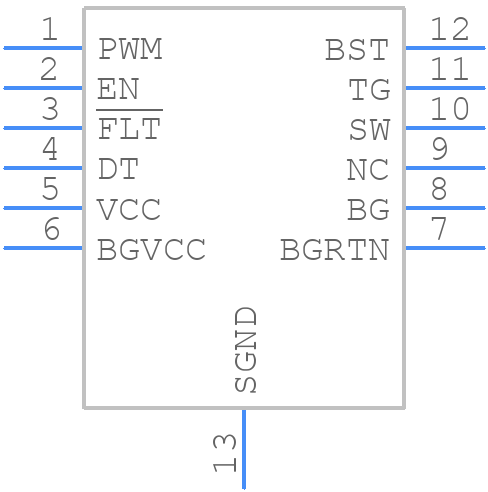

LTC7060HMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7060HMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE DWG # 05-08-1666 Rev F
click to zoom
3D Models
LTC7060HMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE DWG # 05-08-1666 Rev F
click to zoom

LTC7060HMSE#PBF Details

  • Manufacturer Part Number:

    LTC7060HMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-04-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    100 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.036 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    3 mm

LTC7060HMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7060 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog ground plane and to keep the analog and digital grounds separate.
  • The choice of input and output capacitors for the LTC7060 depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. X5R or X7R ceramic capacitors are good options.
  • The LTC7060 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the power dissipation of the device. It's recommended to derate the device's power dissipation at higher temperatures to ensure reliable operation.
  • To ensure stability, it's recommended to follow the layout guidelines in the datasheet, use the recommended input and output capacitors, and avoid long traces between the device and the capacitors. Additionally, the device's output should be decoupled with a capacitor to prevent oscillation.
  • Yes, the LTC7060 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard and is available in a variety of grades, including the automotive-grade LTC7060HMSE#PBF.
