LTC7060HMSE#TRPBF - Analog Devices

Description: n Unique Symmetric Floating Gate Driver Architecture n High Noise Immunity,Tolerates ±10V Ground Difference between Input and Output Grounds n 100V Maximum Input Voltage Independent of IC Supply Voltage VCC n 6V to 14V VCC Operating Voltage n 4V to 14V Gate Driver Voltage n 0.8Ω Pull-Down, 1.5Ω Pull-Up for Fast Turn-On/Off n Adaptive Shoot-Through Protection n Programmable Dead-Time n Three-State PWM Input with Enable Pin n VCC UVLO/OVLO and Floating Supplies UVLO

Download LTC7060HMSE#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

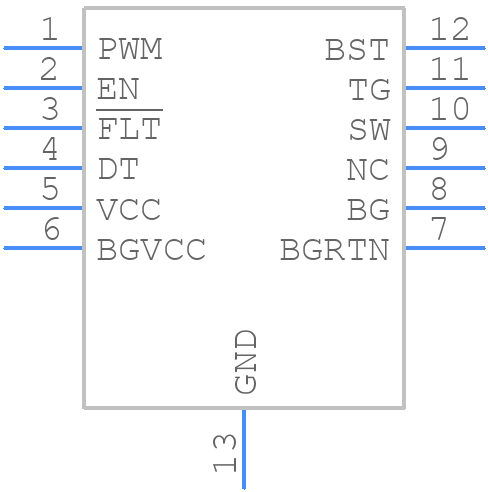

LTC7060HMSE#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7060HMSE#TRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 12-Lead Plastic MSOP Exposed Die Pad
click to zoom
3D Models
LTC7060HMSE#TRPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 12-Lead Plastic MSOP Exposed Die Pad
click to zoom

LTC7060HMSE#TRPBF Details

  • Manufacturer Part Number:

    LTC7060HMSE#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Date Of Intro:

    2020-04-17

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    100 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Turn-off Time:

    0.036 µs

  • Turn-on Time:

    0.03 µs

  • Width:

    3 mm

LTC7060HMSE#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7060HMSE#TRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability and prevent oscillations, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the output voltage. You can also add a small resistor (e.g., 1Ω) in series with the output capacitor to dampen oscillations.
  • The maximum input voltage that can be applied to the LTC7060HMSE#TRPBF is 15V. Exceeding this voltage can cause damage to the device. It's recommended to add input voltage protection, such as a voltage clamp or a TVS diode, to prevent overvoltage conditions.
  • The output capacitor should be selected based on the output voltage, output current, and desired ripple voltage. A general rule of thumb is to choose a capacitor with a capacitance value of at least 10μF and a voltage rating of at least 1.5 times the output voltage. The capacitor's ESR should also be low enough to ensure stability.
  • The LTC7060HMSE#TRPBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage according to the temperature derating curve provided in the datasheet.
