LTC7061IMSE#WTRPBF - Analog Devices

Description: n Unique Symmetric Floating Gate Driver Architecture n High Noise Immunity,Tolerates ±10V Ground Difference n 100V Maximum Input Voltage Independent of IC Supply Voltage VCC n 5V to 14V VCC Operating Voltage

Download LTC7061IMSE#WTRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

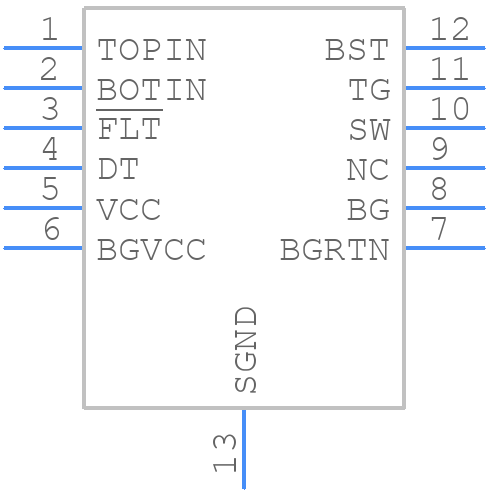

LTC7061IMSE#WTRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7061IMSE#WTRPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC7061IMSE#WTRPBF - Analog Devices - 3D model - Small Outline Packages - 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC7061IMSE#WTRPBF Details

  • Manufacturer Part Number:

    LTC7061IMSE#WTRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    439 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    100 V

  • Supply Voltage1-Min:

    5 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    35 µs

  • Turn-on Time:

    39 µs

  • Width:

    3 mm

LTC7061IMSE#WTRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7061IMSE#WTRPBF involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Additionally, ensure that the output capacitor has a low ESR and is properly decoupled from the input capacitor. You can also add a small resistor (e.g., 1Ω) in series with the output capacitor to dampen oscillations.
  • The maximum input voltage for the LTC7061IMSE#WTRPBF is 15V, but it's recommended to operate the device within the specified input voltage range (2.7V to 5.5V) for optimal performance and reliability.
  • While it's possible to use a different inductor value or type, it's not recommended as it may affect the device's performance and stability. The recommended inductor values and types are carefully selected to ensure optimal performance and efficiency. If you must use a different inductor, make sure to re-evaluate the design and ensure that it meets the required specifications.
  • To troubleshoot issues, start by verifying that the input voltage and current are within the specified ranges. Check the output voltage and current to ensure they are within the expected ranges. Use an oscilloscope to check for oscillations or noise on the output. Also, verify that the PCB layout and component values are correct and follow the recommended guidelines.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC7061IMSE#WTRPBF Overview

Use the download button to access the LTC7061IMSE#WTRPBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC70, or try a keyword search, such as MOSFET Drivers
