LTC7062EMSE#PBF - Analog Devices

Description: Gate Drivers 100V Dual High-Side MOSFET Gate Driver

Download LTC7062EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

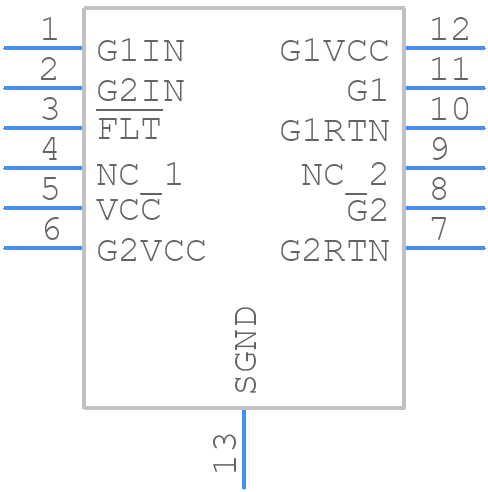

Symbol
LTC7062EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7062EMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package
click to zoom
3D Models
LTC7062EMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package
click to zoom

LTC7062EMSE#PBF Details

  • Manufacturer Part Number:

    LTC7062EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    OPEN-DRAIN

  • Output Peak Current Limit-Nom:

    0.000146 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max:

    0.003 mA

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    14 V

  • Supply Voltage1-Min:

    4 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.021 µs

  • Turn-on Time:

    0.02 µs

  • Width:

    3 mm

LTC7062EMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7062 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure stability, make sure to follow the recommended component values and PCB layout guidelines. Also, ensure that the output capacitor has a low ESR and is properly sized for the output current. Additionally, a minimum of 1uF ceramic capacitor should be placed between the VIN pin and GND to filter out high-frequency noise.
  • The maximum input voltage that the LTC7062 can handle is 15V. However, it's recommended to operate the device within the recommended input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • The LTC7062 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and ensure proper thermal management to prevent overheating.
  • To troubleshoot issues with the LTC7062, start by checking the input voltage, output voltage, and output current. Verify that the device is properly powered and that the output is not overloaded. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the output.
