LTC7063RMSE#TRPBF - Analog Devices

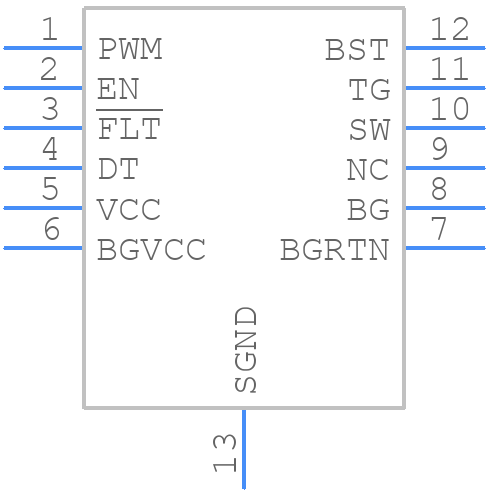

LTC7063RMSE#TRPBF Details

• Manufacturer Part Number:

  LTC7063RMSE#TRPBF

• Brand Name:

  Analog Devices Inc

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Part Package Code:

  EXPOSED PAD MINI_SOIC

• Package Description:

  MSSOP-12

• Pin Count:

  12

• Manufacturer Package Code:

  EXPOSED PAD MINI_SOIC

• Country Of Origin:

  Thailand

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Date Of Intro:

  2023-04-19

• Manufacturer:

  Analog Devices Inc

• YTEOL:

  9

• High Side Driver:

  YES

• Input Characteristics:

  SCHMITT TRIGGER

• Interface IC Type:

  HALF BRIDGE BASED MOSFET DRIVER

• JESD-30 Code:

  R-PDSO-G12

• Length:

  4.039 mm

• Moisture Sensitivity Level:

  1

• Number of Functions:

  1

• Number of Terminals:

  12

• Operating Temperature-Max:

  150 °C

• Operating Temperature-Min:

  -40 °C

• Output Peak Current Limit-Nom:

  6 A

• Output Polarity:

  TRUE AND INVERTED

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  HTSSOP

• Package Equivalence Code:

  TSSOP12,.19

• Package Shape:

  RECTANGULAR

• Package Style:

  SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

• Peak Reflow Temperature (Cel):

  260

• Seated Height-Max:

  1.1 mm

• Supply Voltage-Max:

  14 V

• Supply Voltage-Min:

  6 V

• Supply Voltage-Nom:

  10 V

• Supply Voltage1-Max:

  14 V

• Supply Voltage1-Min:

  4 V

• Supply Voltage1-Nom:

  10 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Finish:

  Matte Tin (Sn) - annealed

• Terminal Form:

  GULL WING

• Terminal Pitch:

  0.65 mm

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  30

• Turn-off Time:

  0.017 µs

• Turn-on Time:

  0.017 µs

• Width:

  3 mm
