LTC7063RMSE#WPBF - Analog Devices

Description: 12-Lead Plastic MSSOP

Download LTC7063RMSE#WPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

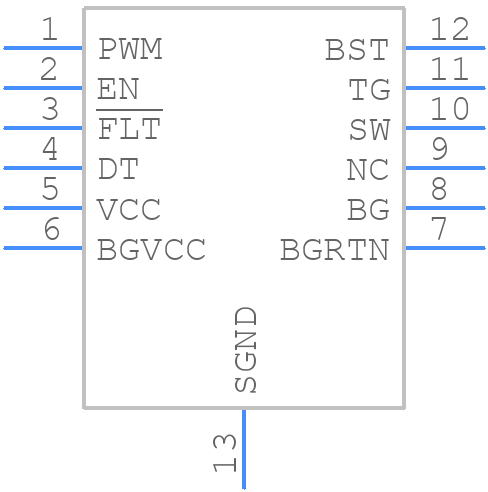

Symbol
LTC7063RMSE#WPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7063RMSE#WPBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 12-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1666 Rev G)
click to zoom
3D Models
LTC7063RMSE#WPBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 12-Lead Plastic MSOP, Exposed Die Pad (Reference LTC DWG # 05-08-1666 Rev G)
click to zoom

LTC7063RMSE#WPBF Details

  • Manufacturer Part Number:

    LTC7063RMSE#WPBF

  • Brand Name:

    Analog Devices Inc

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    EXPOSED PAD MINI_SOIC

  • Package Description:

    MSSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    EXPOSED PAD MINI_SOIC

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2023-04-19

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    HALF BRIDGE BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE AND INVERTED

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    6 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    14 V

  • Supply Voltage1-Min:

    4 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.017 µs

  • Turn-on Time:

    0.017 µs

  • Width:

    3 mm

LTC7063RMSE#WPBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LTC7063RMSE. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it's a good idea to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure stability and prevent oscillations, it's essential to follow the compensation guidelines provided in the datasheet. This includes selecting the correct compensation components, such as resistors and capacitors, and placing them close to the IC. Additionally, it's recommended to use a low-ESR output capacitor and to minimize the output capacitor's equivalent series resistance (ESR).
  • The maximum input voltage that can be applied to the LTC7063RMSE is 15V. However, it's recommended to operate the IC within the recommended input voltage range of 2.7V to 5.5V to ensure optimal performance and reliability.
  • The LTC7063RMSE is rated for operation from -40°C to 125°C. However, it's essential to consider the IC's thermal characteristics, such as its junction-to-case thermal resistance, and to ensure that the IC is properly heat-sinked to prevent overheating. Additionally, it's recommended to derate the IC's performance at high temperatures to ensure reliability.
  • To troubleshoot issues with the LTC7063RMSE, it's recommended to follow a systematic approach, starting with a visual inspection of the PCB and IC. Check for signs of physical damage, such as cracks or burn marks, and verify that the IC is properly soldered. Next, use a multimeter to measure the input and output voltages, and verify that they are within the recommended ranges. Finally, use an oscilloscope to measure the output voltage ripple and verify that it is within the recommended specifications.
