Part Image

LTC7067RMSE#PBF - Analog Devices

Description: 150V Dual High-Side MOSFET Gate Driver

Download LTC7067RMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

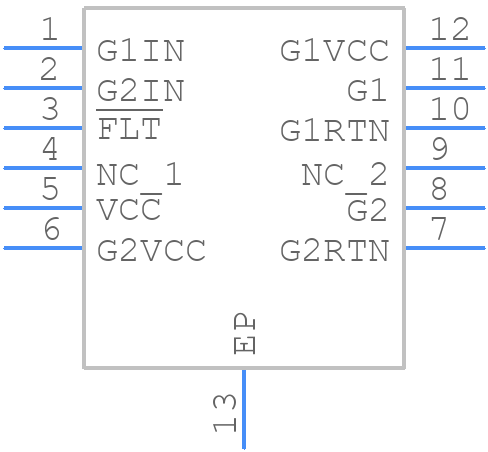

LTC7067RMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7067RMSE#PBF - Analog Devices PCB footprint - Small Outline Packages - Small Outline Packages - MSE Package 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom
3D Models
LTC7067RMSE#PBF - Analog Devices - 3D model - Small Outline Packages - MSE Package 12-Lead Plastic MSOP, Exposed Die Pad
click to zoom

LTC7067RMSE#PBF Details

  • Manufacturer Part Number:

    LTC7067RMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    MSOP-12

  • Pin Count:

    12

  • Manufacturer Package Code:

    05-08-1666

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    8.5

  • High Side Driver:

    YES

  • Input Characteristics:

    SCHMITT TRIGGER

  • Interface IC Type:

    BUFFER OR INVERTER BASED MOSFET DRIVER

  • JESD-30 Code:

    R-PDSO-G12

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Peak Current Limit-Nom:

    6 A

  • Output Polarity:

    TRUE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12,.19

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max:

    14 V

  • Supply Voltage-Min:

    5 V

  • Supply Voltage-Nom:

    10 V

  • Supply Voltage1-Max:

    14 V

  • Supply Voltage1-Min:

    4 V

  • Supply Voltage1-Nom:

    10 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Turn-off Time:

    0.02 µs

  • Turn-on Time:

    0.02 µs

  • Width:

    3 mm

LTC7067RMSE#PBF Frequently Asked Questions (FAQs)

  • A good PCB layout is crucial for the LTC7067RMSE. It's recommended to follow the layout guidelines provided in the datasheet, including keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • The choice of input and output capacitors depends on the specific application requirements. For the LTC7067RMSE, it's recommended to use low-ESR capacitors with a high ripple current rating. A good starting point is to use 10uF to 22uF ceramic capacitors for the input and output. However, the optimal capacitor values may vary depending on the input voltage, output voltage, and output current requirements.
  • The LTC7067RMSE is rated for operation up to 125°C ambient temperature. However, it's recommended to derate the device's performance at higher temperatures to ensure reliable operation. It's also important to consider the thermal design of the system, including heat sinking and airflow, to keep the device within its recommended operating temperature range.
  • To ensure EMC compliance, it's recommended to follow good design practices, including using a shielded enclosure, keeping the device and its associated components away from the enclosure edges, and using EMI filters or shielding on the input and output lines. Additionally, it's recommended to perform EMC testing and certification to ensure compliance with relevant standards.
  • The recommended start-up sequence for the LTC7067RMSE is to first apply the input voltage, followed by the enable signal. This ensures that the device is properly biased and configured before the output voltage is enabled. It's also recommended to add a soft-start circuit to limit the inrush current during start-up.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC7067RMSE#PBF Overview

Use the download button to access the LTC7067RMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC70, or try a keyword search, such as MOSFET Drivers

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.
