LTC7106EDDB#TRPBF - Analog Devices

Description: A 7-Bit Current DAC with PMBus Interface

Download LTC7106EDDB#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

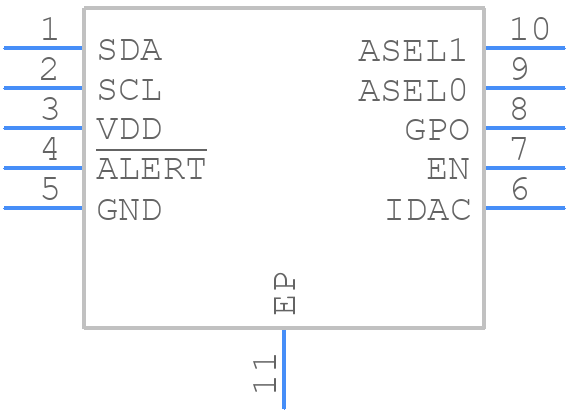

LTC7106EDDB#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7106EDDB#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB
click to zoom
3D Models
LTC7106EDDB#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DDB
click to zoom

LTC7106EDDB#TRPBF Details

  • Manufacturer Part Number:

    LTC7106EDDB#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1722

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    1.25%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.4 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LTC7106EDDB#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7106EDDB#TRPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure accurate voltage regulation, make sure to use a stable input voltage, choose the correct output voltage setting, and use a suitable output capacitor with low ESR. Also, ensure that the device is operated within its recommended operating conditions and that the input and output voltages are within the specified ranges.
  • The maximum input voltage that can be applied to the LTC7106EDDB#TRPBF is 15V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a voltage regulator to ensure that the input voltage does not exceed the maximum rating.
  • The LTC7106EDDB#TRPBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to use a heat sink or a thermal management system to keep the device temperature within the recommended operating range.
  • To troubleshoot issues with the LTC7106EDDB#TRPBF, start by checking the input and output voltages, and the device's operating conditions. Use an oscilloscope to check for any oscillations or noise on the output. Also, check the device's thermal performance and ensure that it is not overheating. Consult the datasheet and application notes for more troubleshooting tips.
