LTC7106IDDB#TRMPBF - Analog Devices

Description: Digital to Analog Converters - DAC A 7-Bit Current DAC for Power Controller with Digital PMBus Management

Download LTC7106IDDB#TRMPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

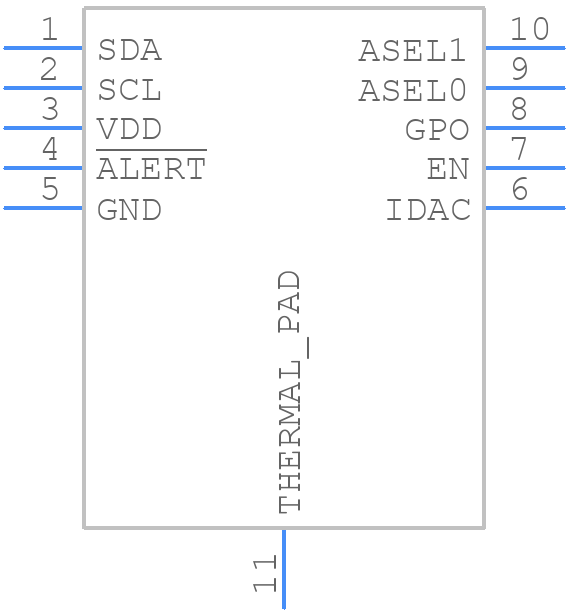

LTC7106IDDB#TRMPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7106IDDB#TRMPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - 10-LEAD (3mm × 2mm) PLASTIC DFN-1
click to zoom
3D Models
LTC7106IDDB#TRMPBF - Analog Devices - 3D model - Small Outline No-lead - 10-LEAD (3mm × 2mm) PLASTIC DFN-1
click to zoom

LTC7106IDDB#TRMPBF Details

  • Manufacturer Part Number:

    LTC7106IDDB#TRMPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1722

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    1.25%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.4 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LTC7106IDDB#TRMPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7106 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce parasitic inductance and capacitance.
  • To ensure stability, make sure to follow the recommended component values and PCB layout, and add a small capacitor (e.g., 10nF) between the VCC and GND pins to filter out high-frequency noise.
  • The maximum input voltage for the LTC7106 is 15V, but it's recommended to keep the input voltage below 12V for optimal performance and to prevent overheating.
  • The LTC7106 is rated for operation up to 125°C, but its performance may degrade at high temperatures. It's recommended to derate the device's performance and consider using a heat sink or thermal management system in high-temperature applications.
  • To troubleshoot issues with the LTC7106, start by checking the input voltage, output voltage, and current draw. Verify that the component values and PCB layout match the recommended design. Use an oscilloscope to check for oscillations or noise on the output. If issues persist, consult the datasheet and application notes or contact Analog Devices' technical support.
