LTC7106IDDB#TRPBF - Analog Devices

Description: A 7-BIT CURRENT DAC FOR POWER CO

Download LTC7106IDDB#TRPBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

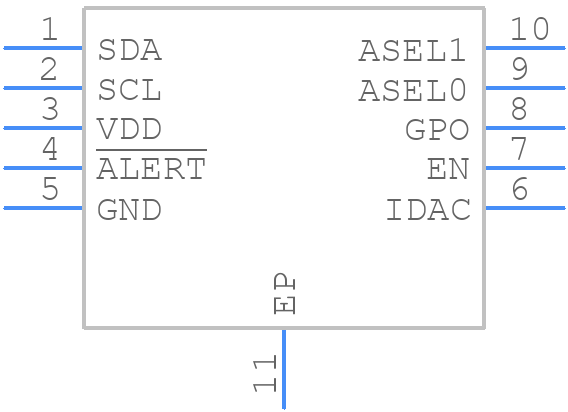

Symbol
LTC7106IDDB#TRPBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7106IDDB#TRPBF - Analog Devices PCB footprint - Small Outline No-lead - Small Outline No-lead - DDB Package 10-Lead Plastic DFN (3mm × 2mm) (Reference LTC DWG # 05-08-1722 Rev Ø
click to zoom
3D Models
LTC7106IDDB#TRPBF - Analog Devices - 3D model - Small Outline No-lead - DDB Package 10-Lead Plastic DFN (3mm × 2mm) (Reference LTC DWG # 05-08-1722 Rev Ø
click to zoom

LTC7106IDDB#TRPBF Details

  • Manufacturer Part Number:

    LTC7106IDDB#TRPBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DFN-10

  • Pin Count:

    10

  • Manufacturer Package Code:

    05-08-1722

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    2'S COMPLEMENT

  • Input Format:

    SERIAL

  • JESD-30 Code:

    R-PDSO-N10

  • JESD-609 Code:

    e3

  • Length:

    3 mm

  • Linearity Error-Max (EL):

    1.25%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    7

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.08,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max:

    1.4 mA

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    2 mm

LTC7106IDDB#TRPBF Frequently Asked Questions (FAQs)

  • A good PCB layout for the LTC7106IDDB#TRPBF involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure accurate voltage regulation, make sure to use a high-quality input capacitor with low ESR, keep the input voltage within the recommended range, and use a stable output capacitor with a low ESR. Also, ensure that the device is operated within its recommended operating temperature range.
  • The maximum input voltage that the LTC7106IDDB#TRPBF can handle is 15V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a transient voltage suppressor to protect the device from voltage spikes or surges.
  • The LTC7106IDDB#TRPBF is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It's recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • To troubleshoot issues with the LTC7106IDDB#TRPBF, start by checking the input voltage, output voltage, and output current. Verify that the device is operated within its recommended operating conditions. Check for any signs of overheating, such as excessive temperature or thermal shutdown. Use an oscilloscope to check for any oscillations or noise on the input or output.
