LTC7138EMSE#PBF - Analog Devices

Description: Switching Voltage Regulators High Efficiency, 140V 400mA Step-Down Regulator

Download LTC7138EMSE#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

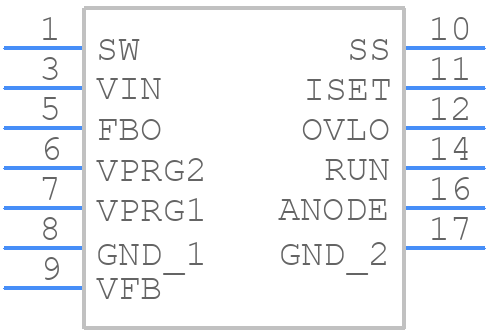

Symbol
LTC7138EMSE#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7138EMSE#PBF - Analog Devices PCB footprint - Other - Other - MSE PACKAGE VARIATION: MSE16 (12) 16-LEAD PLASTIC MSOP
click to zoom
3D Models
LTC7138EMSE#PBF - Analog Devices - 3D model - Other - MSE PACKAGE VARIATION: MSE16 (12) 16-LEAD PLASTIC MSOP
click to zoom

LTC7138EMSE#PBF Details

  • Manufacturer Part Number:

    LTC7138EMSE#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    16

  • Manufacturer Package Code:

    05-08-1871

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    10

  • Additional Feature:

    ALSO 3.3V, 5V OUTPUT AVAILABLE

  • Analog IC - Other Type:

    SWITCHING REGULATOR

  • Control Mode:

    CURRENT-MODE

  • Input Voltage-Max:

    140 V

  • Input Voltage-Min:

    4 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G12

  • JESD-609 Code:

    e3

  • Length:

    4.039 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    85 °C

  • Output Voltage-Max:

    140 V

  • Output Voltage-Min:

    0.8 V

  • Output Voltage-Nom:

    1.8 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP12/16,.19,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.4 mA

  • Surface Mount:

    YES

  • Switcher Configuration:

    BUCK

  • Technology:

    CMOS

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Width:

    3 mm

LTC7138EMSE#PBF Frequently Asked Questions (FAQs)

  • The maximum input voltage that can be applied to the LTC7138EMSE is 42V, but it's recommended to operate within the specified input voltage range of 4.5V to 38V for optimal performance.
  • To ensure stability, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the input voltage should be well-regulated and free of noise.
  • The maximum output current that the LTC7138EMSE can deliver is 3A, but it's recommended to operate within the specified output current range of 0A to 2.5A for optimal performance and to prevent overheating.
  • The output voltage of the LTC7138EMSE can be adjusted by using an external resistor divider network connected to the FB pin. The output voltage can be calculated using the formula: VOUT = 0.8V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is pulled high, the regulator is enabled, and when it's pulled low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator when not in use.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC7138EMSE#PBF Overview

Use the download button to access the LTC7138EMSE#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC71, or try a keyword search, such as Switching Regulator or Controllers
