LTC7138IMSE#WPBF footprint, schematic symbol and 3D model by Analog Devices

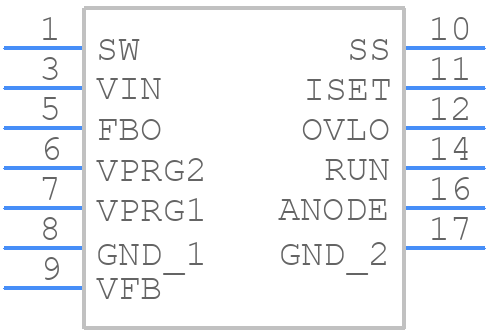

Symbol

click to zoom

PCB Footprints

LTC7138IMSE#WPBF - Analog Devices PCB footprint - Other - Other - MSE Package Variation: MSE16 (12) 16-Lead Plastic MSOP with 4 Pins Removed Exposed Die Pad_2025-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for LTC7138IMSE#WPBF
Part Number LTC7138IMSE#WPBF
Manufacturer Analog Devices
Pin Count 13
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - MSE Package Variation: MSE16 (12) 16-Lead Plastic MSOP with 4 Pins Removed Exposed Die Pad_2025-3
Released Date Dec 10, 2025
Last Modified Date Dec 10, 2025 11:25 AM UTC
Pinout / Pin List Click Here (Member Only)

LTC7138IMSE#WPBF Details

Manufacturer Part Number:
LTC7138IMSE#WPBF
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
Analog Devices Inc
YTEOL:
10
Analog IC - Other Type:
SWITCHING REGULATOR

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

LTC7138IMSE#WPBF Overview

Use the download button to access the LTC7138IMSE#WPBF schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like LTC71, or try a keyword search, such as Switching Regulator or Controllers
