Part Image

LTC7541ABN#PBF - Analog Devices

Description: DAC 1-CH R-2R 12-bit 18-Pin PDIP N

Download LTC7541ABN#PBF Model

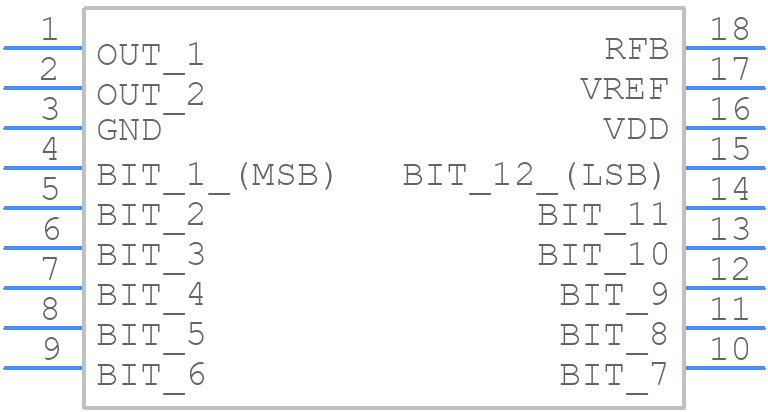

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

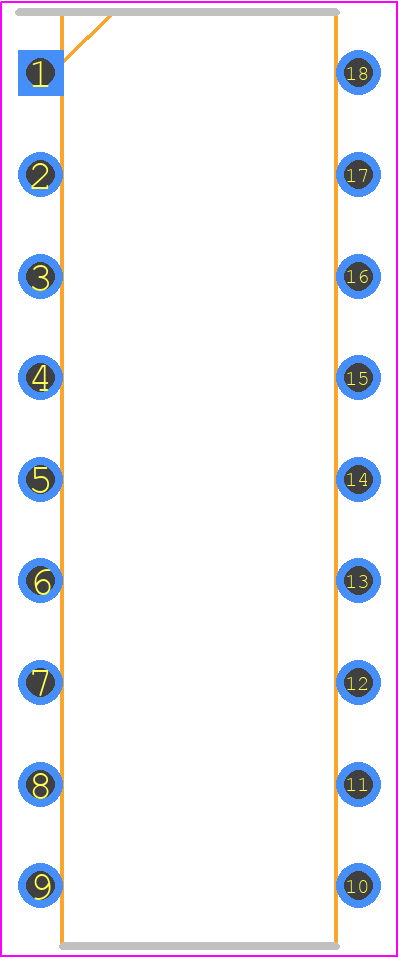

LTC7541ABN#PBF - Analog Devices PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - N18
click to zoom
3D Models
LTC7541ABN#PBF - Analog Devices  - 3D model - Dual-In-Line Packages - N18
click to zoom

LTC7541ABN#PBF Details

  • Manufacturer Part Number:

    LTC7541ABN#PBF

  • Brand Name:

    Analog Devices Inc

  • Pbfree Code:

    No

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    0.300 INCH, PLASTIC, DIP-18

  • Pin Count:

    18

  • Manufacturer Package Code:

    05-08-1510 (N18)

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Converter Type:

    D/A CONVERTER

  • Input Bit Code:

    BINARY, OFFSET BINARY

  • Input Format:

    PARALLEL, WORD

  • JESD-30 Code:

    R-PDIP-T18

  • JESD-609 Code:

    e3

  • Linearity Error-Max (EL):

    0.0122%

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    12

  • Number of Functions:

    1

  • Number of Terminals:

    18

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP18,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    3.81 mm

  • Settling Time-Nom (tstl):

    0.6 µs

  • Supply Current-Max:

    2 mA

  • Supply Voltage-Nom:

    15 V

  • Surface Mount:

    NO

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.62 mm

LTC7541ABN#PBF Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the LTC7541ABN#PBF involves keeping the input and output traces separate, using a solid ground plane, and placing the device close to the power supply bypass capacitors. Additionally, it is recommended to use a low-ESR capacitor for the output filter and to keep the feedback resistors close to the device.
  • The choice of output filter components depends on the specific requirements of your application, including the output voltage, output current, and desired ripple voltage. A good starting point is to use the recommended values in the datasheet, and then adjust them based on your specific requirements. You can also use online tools and calculators to help with the selection process.
  • The maximum input voltage that the LTC7541ABN#PBF can handle is 15V. Exceeding this voltage can cause damage to the device, including permanent damage to the internal voltage regulator. It is recommended to use a voltage limiter or a voltage regulator to ensure that the input voltage does not exceed the maximum rating.
  • To ensure stability, it is recommended to follow the recommended layout and placement guidelines, use a low-ESR output capacitor, and ensure that the feedback resistors are properly sized. Additionally, it is recommended to add a small capacitor (typically 10nF to 100nF) in parallel with the feedback resistors to improve stability.
  • The typical startup time for the LTC7541ABN#PBF is around 100us to 200us. To minimize the startup time, it is recommended to use a fast-start circuit, such as a resistive divider network, to quickly charge the output capacitor. Additionally, using a low-ESR output capacitor can also help to reduce the startup time.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

LTC7541ABN#PBF Overview

Use the download button to access the LTC7541ABN#PBF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like LTC75, or try a keyword search, such as Digital to Analog Converters

About Analog Devices

Analog Devices Inc. is a global leader in the design and manufacturing of analog, mixed-signal, and digital signal processing integrated circuits and software solutions for the industrial, automotive, healthcare, communications industries. Analog Devices serves a diverse range of markets including industrial, automotive, healthcare, energy, aerospace, defense, and consumer electronics industries. Analog Devices’ product portfolio includes a wide range of ICs, modules, and subsystems.

Parts related to LTC7541ABN#PBF

Showing 0 results

LTC7541ABN#PBF Alternates

Showing results

Image Part Number Model
Part Image PM7541EX Rochester Electronics LLC

D/A Converter, 1 Func, Parallel, Word Input Loading, CDIP18

Part Image DAC7541AKP Burr-Brown Corp

D/A Converter, 1 Func, Parallel, Word Input Loading, 0.6us Settling Time, PDIP18

Part Image PM7541AFPC Analog Devices Inc

D/A Converter, 2 Func, Parallel, Word Input Loading, 0.6us Settling Time, PDIP18

Part Image DAC7541ATH Burr-Brown Corp

D/A Converter, 1 Func, Parallel, Word Input Loading, 0.6us Settling Time, CDIP18

Part Image HS7541ABQ Spectrum Control

D/A Converter, 1 Func, Parallel, Word Input Loading, 0.6us Settling Time, CDIP18

For a full list of alternate parts for LTC7541ABN#PBF, check out Findchips.com
