- Part Number LTC7841EUHE#PBF
- Manufacturer Analog Devices
- Pin Count 37
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - 36-Lead (5mm × 6mm) Plastic QFN
- Released Date Dec 28, 2019
- Last Modified Date Dec 18, 2024 3:18 PM UTC
- Pinout / Pin List Click Here (Member Only)
LTC7841EUHE#PBF Details
-
Manufacturer Part Number:
LTC7841EUHE#PBF
-
Brand Name:
Analog Devices Inc
-
Pbfree Code:
No
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Pin Count:
36
-
Manufacturer Package Code:
05-08-1876
-
Country Of Origin:
Thailand
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.01
-
Date Of Intro:
2019-09-30
-
Manufacturer:
Analog Devices Inc
LTC7841EUHE#PBF Frequently Asked Questions (FAQs)
-
A good PCB layout for the LTC7841EUHE involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
-
To ensure proper power-up and configuration of the LTC7841EUHE, follow the recommended power-up sequence, which is to apply VCC first, followed by VDD. Also, make sure to configure the device's registers according to the datasheet and application notes, and verify the configuration using the device's status registers.
-
The LTC7841EUHE has a maximum junction temperature of 125°C. To prevent overheating, ensure good airflow around the device, use a heat sink if necessary, and follow the recommended thermal design guidelines. Also, monitor the device's temperature using the internal temperature sensor and take corrective action if it exceeds the recommended temperature range.
-
To troubleshoot issues with the LTC7841EUHE, start by reviewing the datasheet and application notes to ensure proper configuration and usage. Use a logic analyzer or oscilloscope to capture and analyze the device's signals, and verify that the input and output signals are within the recommended specifications. Also, check for any firmware or software issues, and consult with Analog Devices' support resources if necessary.
-
Yes, the LTC7841EUHE is a high-frequency device and requires proper EMI/EMC design considerations. Use a shielded enclosure, follow good PCB layout practices, and use EMI filters or shielding on the input and output signals. Also, ensure that the device is properly decoupled and follow the recommended layout guidelines for the device's pins.
Trust Checks
Community Provided
System Verified
Community Approved
LTC7841EUHE#PBF Overview

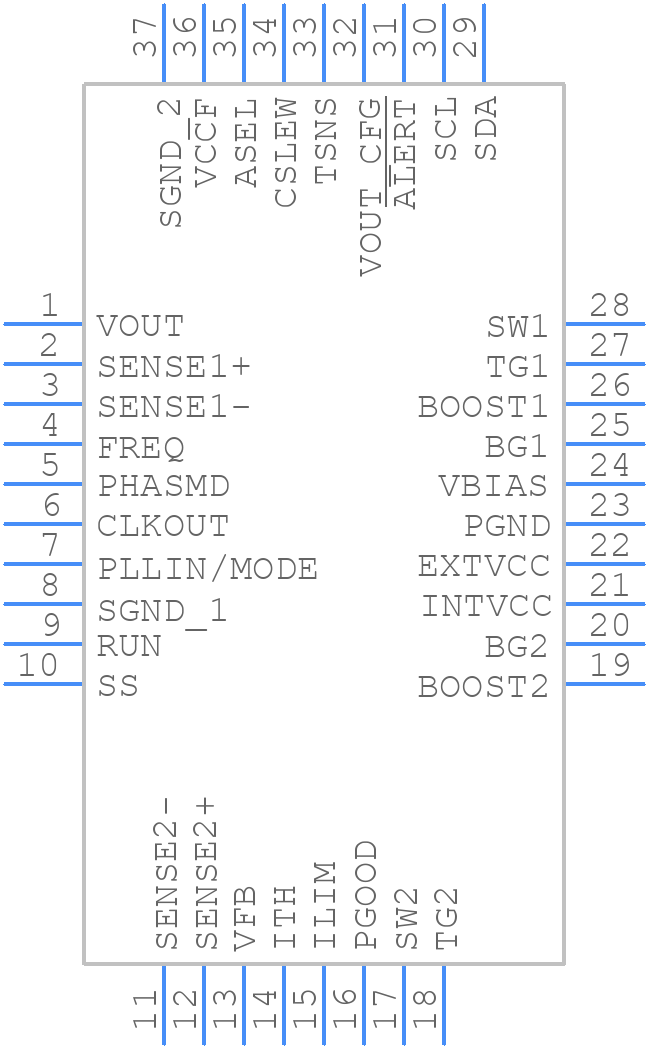

Use the download button to access the LTC7841EUHE#PBF schematic symbol, PCB footprint, and 3D model.
