LTC7892AUJM#PBF - Analog Devices

Description:  GaN Drive Technology fully Optimized for GaN FETs  Output Voltage up to 100V  Wide VIN Range: 4V to 60V and Operates Down to 1V After Start-Up  No Catch, Clamp, or Bootstrap Diodes Needed  Internal Smart Bootstrap Switches Prevent Overcharging of High-Side Driver Supplies  Resistor Adjustable Dead Times  Split Output Gate Drivers for Adjustable Turn-On and Turn-Off Driver Strengths  Accurate Adjustable Driver Voltage and UVLO  Low Operating IQ: 15μA  Programmable Frequency (100kHz to

Download LTC7892AUJM#PBF Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

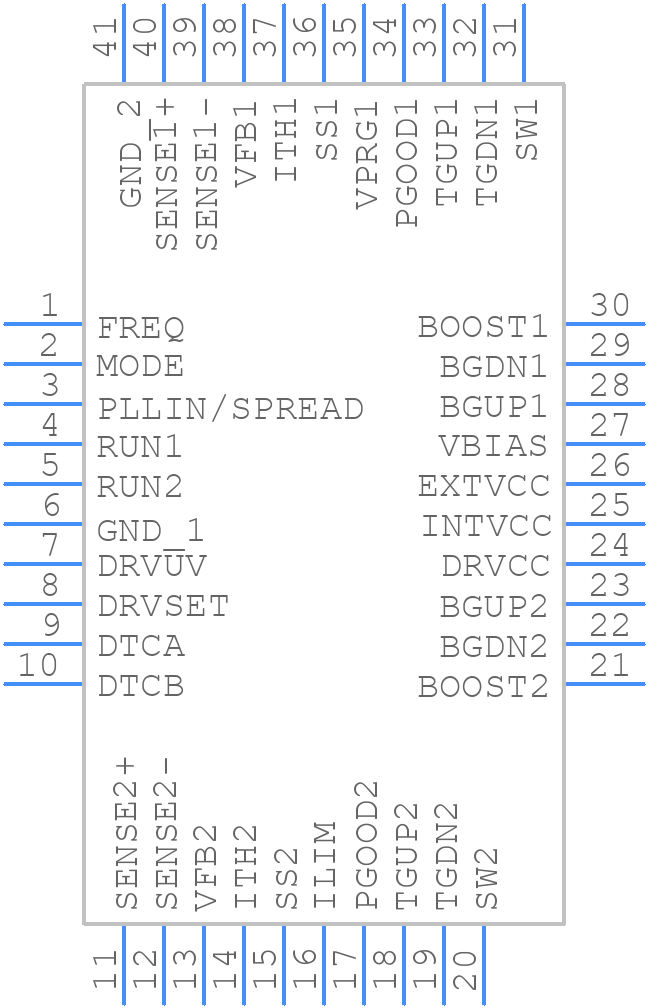

LTC7892AUJM#PBF - Analog Devices - PCB symbol
click to zoom
PCB Footprints
LTC7892AUJM#PBF - Analog Devices PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UJM Package 40-Lead Plastic Side Wettable QFN (6mm × 6mm)
click to zoom
3D Models
LTC7892AUJM#PBF - Analog Devices - 3D model - Quad Flat No-Lead - UJM Package 40-Lead Plastic Side Wettable QFN (6mm × 6mm)
click to zoom

LTC7892AUJM#PBF Details

  • Manufacturer Part Number:

    LTC7892AUJM#PBF

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Analog Devices Inc

  • YTEOL:

    9

  • Analog IC - Other Type:

    DUAL SWITCHING CONTROLLER
